Schneider Electric

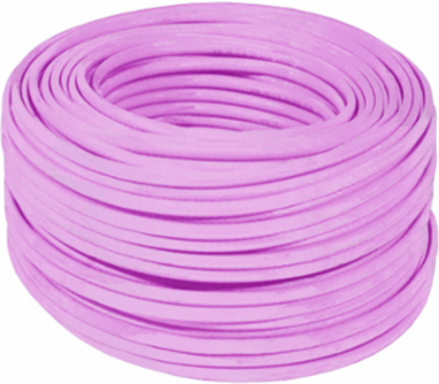

Schneider Electric TSXCANCA100 CANopen Standard Cable 100m, IP20, 8.8kg, Low Smoke, Zero Halogen

CANopen Standard Cable 100m, IP20, 8.8kg, Low Smoke, Zero Halogen
  • MPN: TSXCANCA100
  • PPN: SCH-TSXCANCA100

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$620.37/ EA

Description

This product is part of the CANopen range, an offer of connection components. This CANopen standard cable is a low smoke, zero halogen and flame-retardant cable, an accessory of variable speed drive. The length of this cable is 100m. Its wide range of operating temperature between 5°C and 60°C makes it suitable for standard environment, fixed installation. The cable configuration is (2 x 22AWG) + (2 x 24AWG). It is an IP20 rated product. It weighs 8.8kg. It is compatible for Altivar 32 communication buses and networks. It is suitable for used in material handling, hoisting, wood machines, process machines, textile machines and packaging applications. This product is certified by CE. Connection via SUB-D connector with VWA3618 CANopen card. This range is open to all communication networks, applications, users, and provides ingenious solutions for all specific requirements.

Specifications

Environment

Ip Degree Of Protection
IP20

Contractual warranty

Warranty
18 months

Offer Sustainability

China Rohs Regulation
X
Mercury Free
Yes
Reach Regulation
Free of Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes

Complementary

Marking
CE
Net Weight8.8 kg

Specifications

Range Of Product
CANopen
Cable Length
100 m
Accessory / Separate Part Type
connecting cable
Bus TypeCANopen
Accessory / Separate Part Categoryconnection accessories
Accessory / Separate Part DestinationCANopen bus
