Mersen

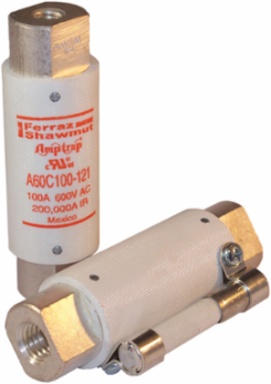

Mersen A60C150-121TI Capacitor Fuse 600V 150A Screw-in Mount Direct Mount

Capacitor Fuse 600V 150A Screw-in Mount Direct Mount
  • MPN: A60C150-121TI
  • UPC: 782001935696
  • PPN: FER-A60C150-121TI

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$346.43/ EA

Description

Mersen low-voltage capacitor fuses provide advanced safety for power correction and harmonic filtering equipment. A capacitor fuse isolates a shorted capacitor before it can damage surrounding equipment or personnel. Typical capacitor failures occur when the internal dielectric can no longer withstand the applied voltage, resulting in a low impedance current path and generating excessive heat and pressure that can cause violent case rupture. Mersen A60C fuses will isolate the shorted capacitor before case rupture occurs while routinely withstanding inrush current at startup.

Specifications

Specifications

Rated voltage AC UL
600 V
Ampere Rating
150 A
Mounting
Direct Mount
Indication System
Yes
Connection/Terminal Material
Silver-Plated Brass
Body/Insulating Material
GMG
Weight
0.65 lb
Frequency (Hz)50/60 Hz
AC or DCAC
AC Max I.R./Breaking Capacity: I1200 kA
Indication System TypeTI Indicator
Connection/Terminal TypeScrew-in
Length3.82 in
