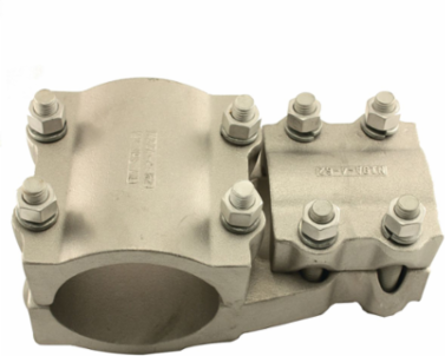

Burndy NNT17A17A Aluminum T Connector, 7.88 Inch L, 3.69 Inch W, 1-1/2 Inch IPS, Tube to Tube
- MPN: NNT17A17A
- UPC: 781810003992
- PPN: BUR-02002164
- UNSPSC: 39121456
CAD
$423.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Cast Al Alloy T Connector, 7.88 IN L, 3.69 IN W, Tube to Tube, 1-1/2 IN IPS Al (Run), 1-1/2 IN IPS Al (Tap), 1/2 IN-13 Bolt Size Dia.
Features
- Type NNT Aluminum T-Connectors for Aluminum and Copper Tube to Tube
- Properly proportioned to permit use on copper-aluminum conductor combinations
- Captured hex head bolts permit one-wrench installation
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - AL Tube Std Run Range
- 1 1/2 IPS
- Conductor - AL Tube Std Tap Range
- 1 1/2 IPS
- Dimension - B Length fraction
- 4 in
- Dimension - Height fraction
- 3-7/8 in
- Dimension - L Length Overall mm
- 200 mm
- Dimension - Length Overall inch
- 7.88 in
- Dimension - Width mm
- 94 mm
- Installation Torque Recommended in-lb
- 300 LBS/in
- Physical Attribute - Number of Run Conductors
- 1
- Physical Attribute - Pad Orientation
- 90 Degree
- Plating Type
- Unplated
- Standards - RoHS Compliance Status
- CM
- Type
- Bolted Tees
- Connector Type
- T-Connector
- Class Code
- B21
- Harmonization Code
- 8535908020
- Lead Time
- 12 wk
- Sub Class Code
- B21B06F
- Material
- Aluminum Alloy
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.580 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 2
- Package - GTIN - Package
- 30781810003993
- Package Quantity
- 2 EA
- Pallet - GTIN - Package
- 70781810003991
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
- NAICS Code
- 3359319102
Conductor - AL Tube Std Run1 1/2 IPS
Conductor - AL Tube Std Tap1 1/2 IPS
Conductor - Connection CombinationTube to Tube
Dimension - B Length inch4.00 in
Dimension - Height inch3.88 in
Dimension - Length BB inch4.00 in
Dimension - Width inch3.69 in
Width4.000 in
One Wrench InstallationY
Physical Attribute - Number of Tap Conductors1
PlatedN
Product TypeMechanical
ApplicationSubstation
Conductor TypeAL Tube Std-Run;AL Tube Std-Tap
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Replaced Catalog NumberNNT17A17A
UL ListedNo
Material - HardwareAluminum
BOX SIZE12.000x12.000x12.000 (in)
Carton - Number of Sub Packs2
Carton - SCC-14 Next Lower Level Sub Pack00781810003992
Case - SCC-14 Next Lower Level Sub Pack30781810003993
Package - Total Units2 EA
Package Weight0.000 lb.
Pallet Height40.500 in
Pallet Weight389.880 lb.
Standard Package Quantity2
Certifications
- CSA Approved
- No
- ETL
- No
cULusNo
UL RecognizedNo
