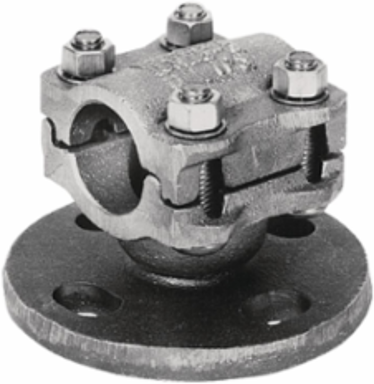

Burndy UH225W Copper Alloy Bus Support, 4 IPS, 5" Bolt Dia, 5/8" Bolt, 7.25" Height
- MPN: UH225W
- UPC: 781810119761
- PPN: BUR-323638
- UNSPSC: 39121408
CAD
$2472.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cast Cu Alloy Bus Support-Complete Part, 4" IPS, 5" Bolt Dia, 5/8" Bolt.
Features
- Type UH Copper Bus Supports for Supporting Copper Tube to Base
- High copper alloy bus support for mounting tube on a post or pedestal type insulator
- Single bolt allows rotation to any angle
- Rotate cap 180 degrees for slip or rigid fit
- Supplied with hardware for mounting to cap of insulator
- Suffix -B on the catalog number denotes base mounting hardware is supplied
Specifications
Key Specifications
- Country of Origin
- United States
- Conductor - Copper Tube EH Size
- 4 IPS
- Conductor - Copper Tube Std Size
- 4 IPS
- Dimension - B Length inch
- 3.25 in
- Dimension - Height inch
- 7.25 in
- Dimension - Hole Size inch
- 0.69 in
- Dimension - Width mm
- 191 mm
- Installation Torque Recommended in-lb
- 660 in-lb
- Plated
- Y
- Product Type
- Mechanical
- Application
- Substation
- Number of Conductors/Ports (Main/Primary)
- 1
- Conductor Type
- CU Tube Std-Size;CU Tube EH-Size
- Number Of Conductors
- 1
- Class Code
- B21
- Harmonization Code
- 8535908060
- Lead Time
- 12 wk
- Fitting Type
- Slip or Rigid
- UL Listed
- No
- Material
- Copper Alloy
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.000 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 1
- Pallet Weight
- 0.000 lb.
- NAICS Code
- 3359319102
Conductor - Connection CombinationBase to Tube
Conductor - Copper Tube EH Size Range4 IPS
Conductor - Copper Tube Std Size Range4 IPS
Dimension - G inch4.50 in
Dimension - Hole Size fraction11/16
Dimension - Width inch7.50 in
Hardware TypeCap mounting kit (w/o nuts)
One Wrench InstallationY
Plating TypeTin - Hot Dipped
Standards - RoHS Compliance StatusEX
Number of Conductors1
TypeCable or Tube to Insulator Bus Supports
Connector TypeBus Support
Certification AgencyProposition 65
Freight Class Code16027000
Image Actual Or RepresentativeA
Sub Class CodeB21B01F
Mounting Hardware5/8-11 x 1" LG
Bolt Circle Diameter5.00 in
Material - HardwareDURIUM™ Silicon Bronze
BOX SIZE0.000x0.000x0.000 (in)
Carton - Number of Sub Packs1
Carton - SCC-14 Next Lower Level Sub Pack00781810119761
Pallet - GTIN - Package70781810119760
Standard Package Quantity1
Certifications
- CSA Approved
- No
- ETL
- No
cULusNo
UL RecognizedNo
