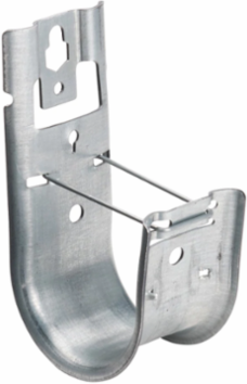

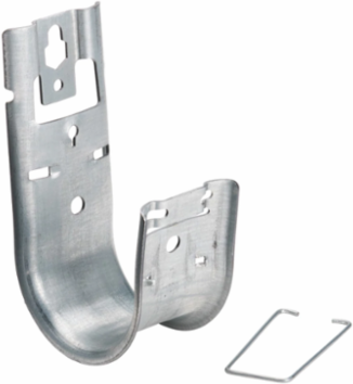

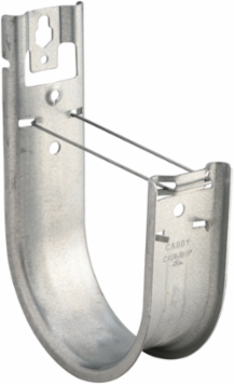

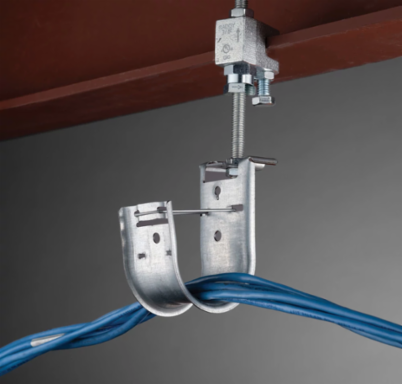

nVent Caddy CAT16HP Cat HP J-hook, pre-galvanized, 1" dia

Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
Cat HP J-hook, pre-galvanized, 1" dia
  • MPN: CAT16HP
  • UPC: 782856617600
  • PPN: CAD-CAT16HP
  • UNSPSC: 39131709

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Looking to buy a large quantity?

To view product inventory

CAD$5.26/ EA

Description

Non-continuous pathway support solution with a wide base design and smooth beveled edges. Provides optimal support for high-performance data cable, including CAT7 and fibre optics. 1" (25 mm) diameter.

Features

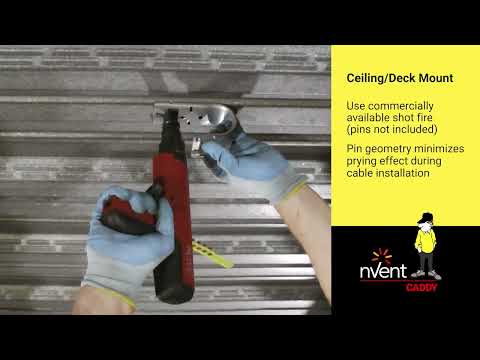

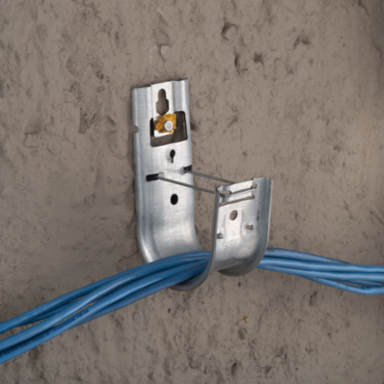

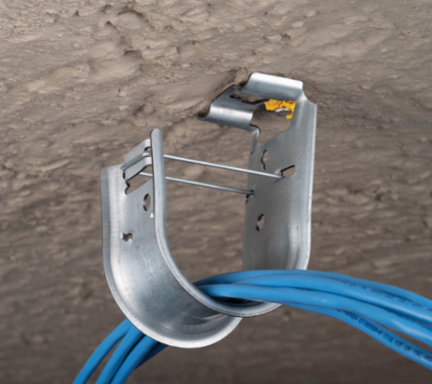

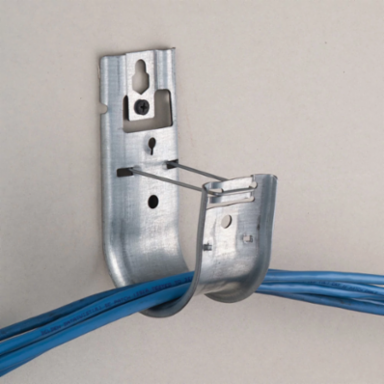

  • Versa-Mount Technology: Innovative attachment design provides multiple structural and installation methods for wall, ceiling, and threaded rod mounting applications
  • Ideal for unknown jobsite applications or attachment methods
  • Improved design allows for optimized inventory while reducing job site scheduling risks associated with multiple SKUs
  • Provides optimal support for high-performance data cable—including category cable, Power over Ethernet (PoE), and fiber optic
  • Industry-leading bend radius designed to protect high-performance data installations

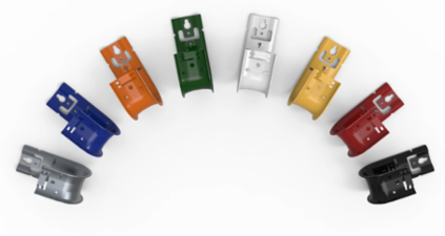

  • Multiple color options aid in the identification and organization of the pathway application
  • Provides superior fill capacity and load rating
  • Compliant with UL® 2043 and suitable for use in air handling (plenum) spaces
  • Meets ISO®/IEC 14763-2, ANSI®/TIA 568 and ANSI®/TIA 569
  • Complies with EN 50174-2

Specifications

Specifications

BABA
Yes, BABA Compliant
Finish
Pregalvanized
Area
690
Cable Capacity, Cat 6
15
Height 1 (H1)
108.9
Static Load (F)
60
Static Load Safety Factor
3:1
MaterialSteel
Diameter (Ø)25
Cable Capacity, Cat 5e20
Cable Capacity, Cat 6A10
Height 2 (H2)90.2
Static Load267
Sub BrandCADDY
