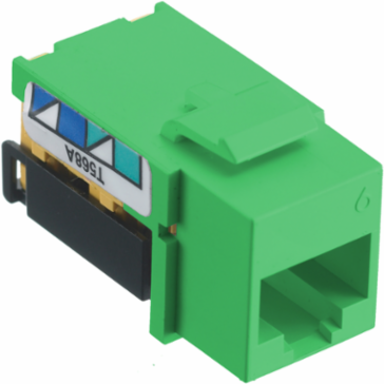

Bryant NSJ6GN netSELECT™ Category 6 Modular Jack, 0.86 x 0.67 x 1.29 Inch, Quick-Lace Termination
Bryant NSJ6GN netSELECT™ Category 6 Modular Jack, 0.86 x 0.67 x 1.29 Inch, Quick-Lace Termination
- MPN: NSJ6GN
- UPC: 883778503030
- PPN: HBL-NSJ6GN
- UNSPSC: 39121444
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$12.29/ EA
Description
netSELECT™ Category 6 modular jacks meet all TIA channel parameters and support applications up to 5GBASE-T. The innovative angled QuickLace™ termination towers provide ample room for lacing, accelerating the termination.
Features
- Easy To Terminate Angled Wiring Towers
- Exceeds TIA Category 6 Standards
- Quick-Lace Termination
Specifications
Specifications
- Country of Origin
- United States
- Width
- 2.500 in
- Number of Pieces in Package
- 1
- Size
- 0.86 (22) x 0.67 (17) x 1.29 (33)
- Color
- Green
- Contact Resistance
- Per TIA
- Insertion Loss
- Per TIA
- Special Features
- Quick-Lace Termination
- Sub Brand
- netSELECT™
- Type
- Modular Jack
- Connectivity
- RJ45 Jack to IDC Punch Down
- Display Size
- Standard Sized Product
- Operating Cycles
- 750+ Plug
- Description - Invoice
- JACK, NSJ,CAT6,8 POS,UNI,A/B,GN
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- HPWALL2
- Material - Housing
- High-impact thermoplastic (UL 94V-0)
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 25 EA
- Case Weight
- 3.000 lb.
- Lowest Level UOM
- Each
Contact Point MaterialBeryllium Copper with Gold Over Plating
Industry Standard(s)ANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
PerformanceTIA Cat 6 Component
ApplicationUp to 5GBASE-T, 802.3bt POE
ContactIDC: Phosphor Bronze with 100 Micro-Inch Tin Over Plating
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
MountingSnap-fit
StandardANSI/TIA/EIA-568 Category 6;UL 1863 - Communications-Circuit Accessory;IEC60512-99-002 POE Disconnection Endruance;UL 2043 - Suitable for Air-Handling Spaces;RoHS Compliant
Temperature RatingMax Continuous- 75° C, Minimum- -40° C Without Impact
Withstand Voltage1,000 Vac @ 60 Hz
Construction Material - MainThermoplastic
Mounting TypeSnap-fit
StyleRJ-45 Jack
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberHXJSC6GN
Material - Mounting HardwareScrew Mounting
SeriesnetSELECT™ Series
BOX SIZE4.362x6.550x5.425 (in)
Carton - Number of Sub Packs25
Carton - SCC-14 Next Lower Level Sub Pack883778503030
Case - Total Units300 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
