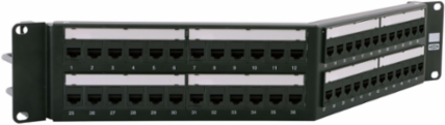

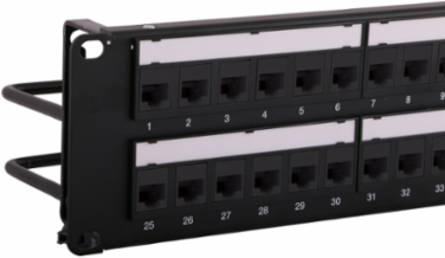

Hubbell Premise Wiring HPJ6A48A Category 6A Jack Panel, 19x3.5 Inch, Cobra-Lock Termination, Power Coat Finish
- MPN: HPJ6A48A
- UPC: 662620663623
- PPN: HBL-HPJ6A48A
- UNSPSC: 43223309
CAD
$1732.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NEXTSPEED Ascent Category 6A Jack Panel Kit with Cobra-Lock Termination
Features
- Third Party Verified Category 6A Component Jacks
- Cobra-Lock Termination Reduces Termination Time by Over 75%
- Wires Secured Under Constant Compression
- Easily Re-Terminate
- Qualified to 150% of 802.3bt PoE Current Level
- Cobra-Lock™ Termination
Specifications
Additional
| Performance | TIA Component Compliant; Up to 10GBASE-T, 802.3bt POE; Qualified to 150% of 802.3bt PoE Current Level; Withstand Voltage 1,000 Vac @ 60 Hz |
|---|---|
| IDC Re-termination Cycles | 25 Maximum |
| Mounting Type | 19 in. Rack Mount |
| Termination Type | Cobra-Lock |
| Plug Compatibility | RJ-11 to 45 |
| Material - Jack | High-impact thermoplastic (UL 94V-0) with Zinc die-cast rear |
| Material - IDC Contacts | Phosphor bronze with 100 micro-inch tin over plating |
| Compliance | ANSI/TIA/EIA-568 Category 6A; UL 1863; UL 2043; RoHS; IEC60512-99-002 |
| Country of Origin | TW |
| Plug Mating Cycles | 750 Minimum |
|---|---|
| Dimensions | 19 (483) x 3.5 (90) in |
| Style | RJ-45 Jack |
| Wire Compatibility | 24-22 AWG Solid |
| Material - Panel | 14 gauge steel rolled-edge construction |
| Material - Nose Contacts | Copper Alloy with Gold Over Plating |
| Finish | Power Coat |
| Color | Black |
| Series | Cobra-Lock Series |
