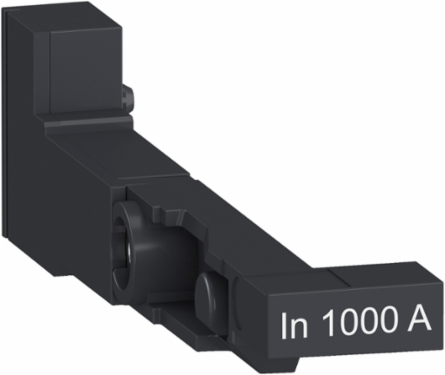

Schneider Electric LV833093SP Sensor plug, MasterPact MTZ1/MTZ2 with MicroLogic X, 1000A rating, spare part
- MPN: LV833093SP
- PPN: SCH-LV833093SP
- UNSPSC: 39121601
CAD
$786.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Sensor plug, MasterPact MTZ1/MTZ2 with MicroLogic X, 1000A rating, spare part
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Line Rated Current | 1000 A |
|---|
| Us Rated Supply Voltage | 3.3 V |
|---|
Important Information Attributes
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | N |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Persona Type Ids | PB |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Offer Type | spare part |
| Product Or Component Type | sensor plug |
| Range | MasterPact |
| Sustainable Packaging | No |
| Typical Load Current | 600 µA |
| Accessory / Separate Part Category | control unit accessory |
| Customs Code | 8538908120 |
| Silicone Free | Yes |
| Market Segmentation | Commercial, Industrial |
|---|---|
| Local Publishable Date | 2024-11-14 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1943 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Panel Builder |
| Tier | 3 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | 1 instruction sheet |
| Returnability | No |
| Trip Unit Name | MicroLogic |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Nbr. Of Units In Pkg. | 1 |
| Halogen Free Status | Product contains halogen above thresholds |
| Warranty In Months | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Recycled Metal Content At Cr Level | 0 % |
| Silicon Free | Yes |
| Halogen Content Performance | Product contains halogen above thresholds |
| Packaging Without Single Use Plastic | No |
| Product Compatibility | control unit MicroLogic 2.0 X, control unit MicroLogic 3.0 X, control unit MicroLogic 5.0 X, control unit MicroLogic 6.0 X, control unit MicroLogic 7.0 X, control unit MicroLogic 2.0 Xi, control unit MicroLogic 3.0 Xi, control unit MicroLogic 5.0 Xi, control unit MicroLogic 6.0 Xi, control unit MicroLogic 7.0 Xi |
|---|---|
| Halogene Performance | Product contains halogen above thresholds |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | sensor plug |
|---|
| Provided Equipment | 1 instruction sheet |
|---|
ETIM
| ETIM 8 | EC002498 |
|---|---|
| ETIM 10 | EC002498 |
| ETIM 9 | EC002498 |
|---|
