Weidmuller 1288330000 CC 15/27 K MC NE RT
- MPN: 1288330000
- PPN: WDM-1288330000
CAD
$0.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

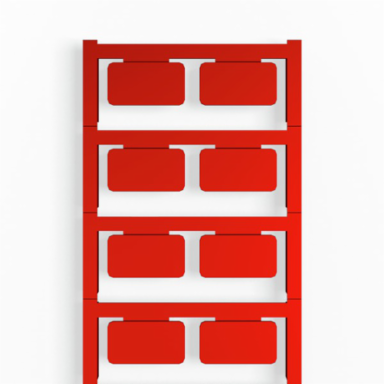

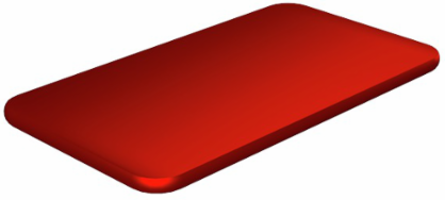

ClipCard, Device markers, 15 x 27 mm, red
Documentation & Downloads
Specifications
General Data
- Adhesive
- Double-sided adhesive tape
- Halogen
- No
- Material colour according to resistance code
- 2
- Recommended industries
- Machinery
- Version
- Self-adhesive
- compatible printer
- 1324380000
Colourred
MaterialPolyamide 66
Operating temperature range-40...60 °C
UL 94 flammability ratingV-2
Width27 mm
Dimensions And Weights
- Width
- 27 mm
- Height
- 15 mm
- Depth
- 1 mm
- Net weight
- 1.51 g
Width (inches)1.063 inch
Height (inches)0.591 inch
Depth (inches)0.039 inch
Approvals
- ROHS
- Conform
Classifications
- ETIM 6.0
- EC001288
- eClass 9.0
- 27-40-06-29
- eClass 10.0
- 27-40-06-29
ETIM 7.0EC001288
eClass 9.127-40-06-29
