Weidmuller 1138440000 CC 85/54 K MC NE GE
- MPN: 1138440000
- PPN: WDM-1138440000
CAD
$3.61
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

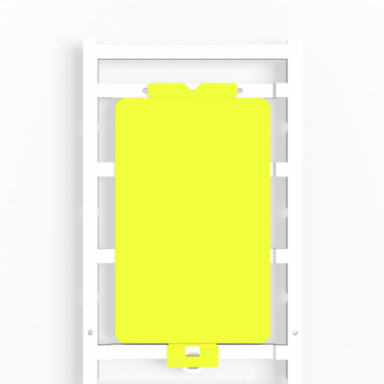

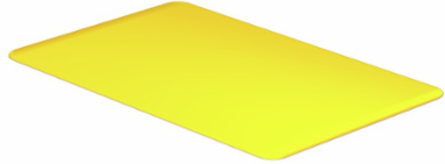

ClipCard, Device markers, 54 x 85 mm, yellow
Documentation & Downloads
Specifications
General Data
| Adhesive | Double-sided adhesive tape |
|---|---|
| Halogen | No |
| Material colour according to resistance code | 4 |
| Recommended industries | Machinery |
| Version | Self-adhesive |
| compatible printer | 1324380000 |
| Colour | yellow |
|---|---|
| Material | Polyamide 66 |
| Operating temperature range | -40...60 °C |
| UL 94 flammability rating | V-2 |
| Width | 85 mm |
Classifications
| ETIM 6.0 | EC001288 |
|---|---|
| eClass 9.0 | 27-40-06-29 |
| eClass 10.0 | 27-40-06-29 |
| ETIM 7.0 | EC001288 |
|---|---|
| eClass 9.1 | 27-40-06-29 |
| UNSPSC | 30-21-18-01 |
Dimensions And Weights
| Width | 85 mm |
|---|---|
| Height | 54 mm |
| Depth | 0.8 mm |
| Net weight | 13.3 g |
| Width (inches) | 3.346 inch |
|---|---|
| Height (inches) | 2.126 inch |
| Depth (inches) | 0.031 inch |
Approvals
| ROHS | Conform |
|---|
