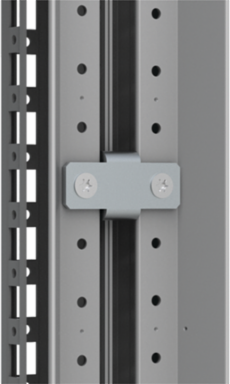

nVent Hoffman CCEH06 Short External Baying Brackets, CCEH, 30x57x20mm, Zinc Plated, Mild Steel
- MPN: CCEH06
- UPC: 783510456252
- PPN: HOF-CCEH06
- UNSPSC: 39121321
CAD
$81.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Short External Baying Brackets, CCEH join partial-door enclosures with proper alignment without reducing enclosure space. This Short External Baying Brackets, CCEH, CCEH06 item measures 30x57x20mm with a material of Mild Steel, finish Zinc Plated.
Features
- Description: Short brackets mounted on the outside hole pattern of the frame of the bayed enclosures with an "auto spacer" function. Specially designed for small doors/pannels configuration. This method of baying mild steel enclosures has also the advantage of creating a direct earthing connection between the enclosure frames.
- Material: 3 mm zinc plated steel.
- Pack quantity: 6 brackets with mounthing material.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 57 |
| Works With | IEC |
| Product Family | Free-Standing |
| Thickness (T) | 3 |
| Weight | 0.5 |
| Size | 1.18 x 2.24 x 0.79 inch |
| Construction | 11 gauge |
| Height (H) | 30 |
|---|---|
| Depth (D) | 20 |
| Enclosure Material | Mild Steel |
| Finish | Zinc Plated |
| Package Quantity | 6 |
| Material | Mild Steel |
| Color | Unpainted |
| Consist of | Short External Baying Brackets; Mounting Components and Instruction Manual |
