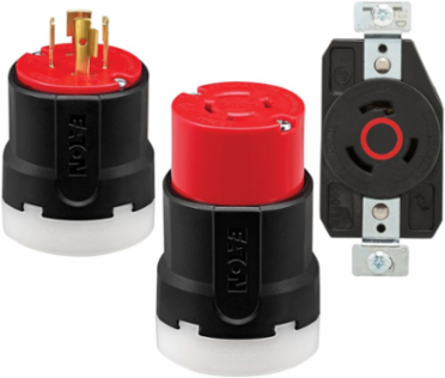

Eaton AHCL1930R Eaton Arrow Hart Color Coded Locking Receptacle, #14-8 AWG, 30A, Industrial, 3ØY 277/480 V,Red, Black, Ultra grip, Glass filled Nylon, L19-30, Four-pole, Four-wire, Glass-filled Nylon, -40°C (w/o impact) to 70°C (-40°F to 158°F)
- MPN: AHCL1930R
- UPC: 032664758621
- PPN: COW-AHCL1930R
CAD
$73.82
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Eaton Arrow Hart Color Coded Locking Receptacle, #14-8 AWG, 30A, Industrial, 3ØY 277/480 V,Red, Black, Ultra grip, Glass filled Nylon, L19-30, Four-pole, Four-wire, Glass-filled Nylon, -40°C (w/o impact) to 70°C (-40°F to 158°F)
Documentation & Downloads
Specifications
Key Specifications
- Special features
- Voltage Color Coding
- Face/body material
- Glass filled nylon
- Material
- Glass filled nylon
- Amperage Rating
- 30A
- Type
- Locking Receptacle
- Design type
- Ultra grip
- Operating temperature
- -40 to 70 °C (-40 to 158 °F)
- Application
- Industrial
ColorBlack
Wiring methodBack and side
Allowable wire size#14-8 AWG
Number Of PolesFour-pole
NEMA configurationL19-30
Number of wires4
Voltage rating3ØY 277/480 V
General
- UPC
- 032664758621
- Product Height
- 3.64 in
- Product Weight
- .33 lb
- Compliances
- RoHS Compliant
Product Length/Depth1.62 in
Product Width1.06 in
WarrantyRefer to warranty document.
CertificationsCSA Certified
