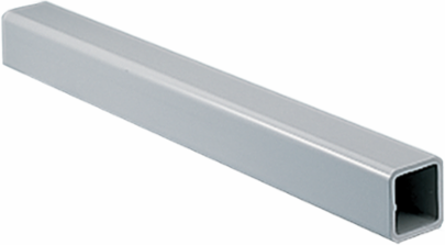

nVent Hoffman CCS8T10 Compact Series 4 Tube, 991x80x80mm, Lt Gray Steel, IP55 Rating
- MPN: CCS8T10
- UPC: 783510681005
- PPN: HOF-CCS8T10
- UNSPSC: 39121325
CAD
$596.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
For connecting the components together in the Compact Series 4 Pendant Arm System. This Compact Series 4 Tube, CCS8T10 item measures 991x80x80mm with a material of Lt Gray, Steel.
Features
- Square and rectangular tubes are cold-formed, hollow, welded steel with 5-mm wall thickness available in various lengths
- Connection components fastened to support arm with set screws
- Assembled Compact Series 4 HMI Arm System has a max weight load of 337 lb. (153.2 kg)
Documentation & Downloads
Specifications
Additional
- Length
- 39 in.
- Material
- Steel
- Finish
- Powder Coated Light Gray (RAL 7035)
- Width
- 80 mm
- Depth
- 1000 mm
- Weight
- 23.6
- Product Family
- Compact Series 4
- Color Code
- RAL 7035
Size80 sq. mm
Protection RatingIP55
Thickness4.8 mm
Height80 mm
Inside Cross Section7.6 mm
Sub BrandCompact
ColorLtGray
BABAContact Manufacturer
