nVent Hoffman CFC383616SS Concept Console, 38.00 x 36.00 x 15.00 Inch, Stainless Steel, NEMA 4X
nVent Hoffman CFC383616SS Concept Console, 38.00 x 36.00 x 15.00 Inch, Stainless Steel, NEMA 4X
- MPN: CFC383616SS
- UPC: 783510873400
- PPN: HOF-CFC383616SS
- UNSPSC: 39121323
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description

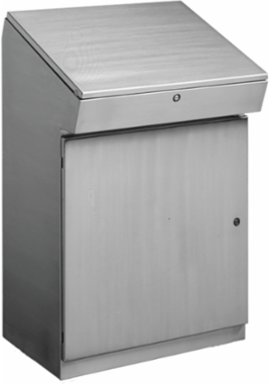

Sloped Stainless Steel Console provides a convenient surface for mounting and monitoring components. This Concept Console Type 4X, CFC383616SS item measures 38.00x36.00x15.00 inches with a material of SS304 finish Brushed.
Features
- Solid bottom
- Corner-formed doors
- External-formed 90-degree body flange
- 20-degree sloped-top cover for 38.00-in. (965-mm) tall console or 30-degree top cover for 48.00-in. (1219-mm) console
- Quarter-turn stainless steel latches hold top cover securely closed
- Door props hold top cover open at 90-degrees
- Integral water-shedding trough
- Collar studs for optional back panel
- Optional side panels (mounted to collar studs) expand equipment mounting space
- Tool-to-open 3-point latch on front access door; door is removable and reversible; 170-degree full-access opening
- Seamless foam-in-place gasket
- Bonding provision on door; grounding stud on body
- Provision for data pocket on lower front door
- Easy-to-remove clip-style hinge pins
Specifications
Specifications
- BABA
- Contact Manufacturer
- Width (W)
- 914
- Protection Rating
- NEMA Type 12
- Finish
- Brushed #4
- Data Pocket
- Large
- Weight
- 140
- Material
- Stainless Steel
Height (H)965
Depth (D)381
Product FamilyConcept
Thickness (T)1.98
NEMA Rating4X Watertight, corrosion-resistant
Sub BrandConcept
Size38.00x36.00x15.00 in
