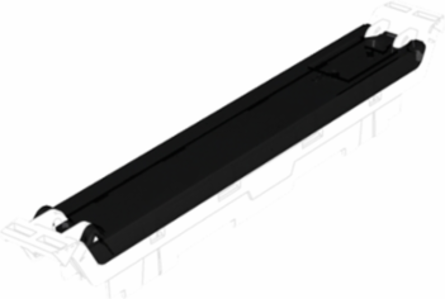

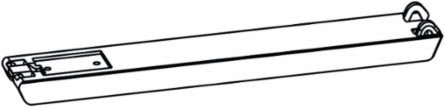

Weidmuller 1104240000 CH20M12 C BK 1819
- MPN: 1104240000
- PPN: WDM-1104240000
CAD
$2.93
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

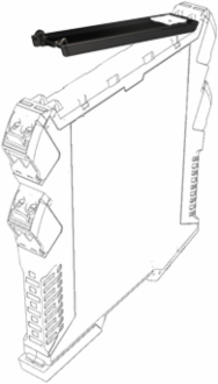

Modular housing, OMNIMATE Housing - series CH20M black, Transparent, Tilt cover, Width: 12.5 mm
Documentation & Downloads
Specifications
System Characteristics
| Version | Tilt cover |
|---|---|
| Encapsulation option | No |
| Contact to terminal rail | No |
|---|
Approvals
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 86.3 mm |
|---|---|
| Width | 12.5 mm |
| Height | 4 mm |
| Net weight | 2.54 g |
| Length (inches) | 3.398 inch |
|---|---|
| Width (inches) | 0.492 inch |
| Height (inches) | 0.157 inch |
Material Data
| Insulating material | PC |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 250 |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 120 °C |
| Colour | black, Transparent |
|---|---|
| Insulating material group | IIIa |
| UL 94 flammability rating | V-2 |
| Operating temperature, min. | -40 °C |
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-90 |
| eClass 10.0 | 27-18-27-92 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-90 |
