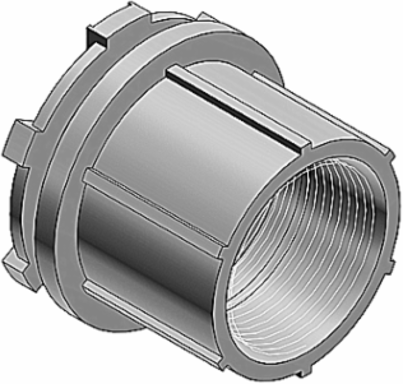

Thomas & Betts HTZ2 Chase Conduit Hubs
- MPN: HTZ2
- UPC: 042269495500
- PPN: T-B-HTZ2
CAD
$21.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Zinc Hub with Insulated Throat Hub Size 3/4 Inch
Features
- Captive O-ring fits snugly in groove preventing loss and fumbling with parts.
- Knurled inner face of locking nipple provides 360 degrees of locking and bites through box wall to ensure grounding.
- Locking nipple has tightening lugs on two planes for easier assembly in hard to reach field conditions.
- Plastic insulated throat, precision cast and machined surfaces permit safer wire pulling.
- Suitable for use where the system is normally hosed down (NEMA 4) for cleaning.
Specifications
European Specifications (ETIM)
| ETIM | EC001180 Screw connection for protective metallic hose |
|---|---|
| Model | Straight |
| Connection type screw connection to housing | Thread |
| One-piece | N |
| Nominal size in inch | 3/4 inch |
|---|---|
| Revolving thread | N |
| Thread type | NPT |
| Material housing | Zinc die-cast |
North American Specifications (UNSPSC)
| UNSPSC | 39131707 Electrical conduit coupling |
|---|---|
| Brand Name | T&B |
| Special Features | Chase Design Provides Maximum Space for Wiring In The Box, Locking Nipple Sits Flush In The Enclosure |
| Standard | UL E28720, CSA |
| Material | Zinc Die Cast |
| IGCC | 5548 Electrical conduit coupling |
|---|---|
| Type | Chase Conduit Hubs |
| Application | Hubs Provide Raintight Connections Between Junction Boxes or Between a Junction Box and Conduit System While Maintaining Ground Continuity. |
| Trade Size | 3/4 Inch |
Packaging
| Outer Quantity | 25 |
|---|---|
| Weight Uom | 0.3 lbs. Each |
| Outer Dimensions (inches) | 8.5x8.7x2.7 |
|---|
