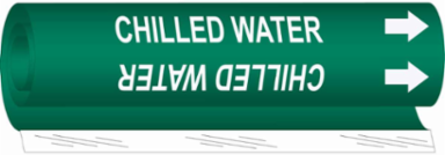

Brady 5646-I Chilled Water Pipe Marker, 9" H x 8" W, Fits Pipes 1.5" Dia. Thru 2.375" Dia.
- MPN: 5646-I
- UPC: 754473926717
- PPN: BRD-5646-I
- UNSPSC: 55121737
CAD
$16.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
B-689 Pipemarkers from Brady® are coiled printed plastic sheets with sealed color graphics
Features
- Designed for use on rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Style I wrap-around pipe markers fit pipes with outside diameter of 1-1/2" to 2-3/8"
- Resistant to UV light exposure, high humidity, high temperatures, abrasion, chemical reagents and physical agitation
- Excellent chemical resistance
Documentation & Downloads
Specifications
Key Specifications
- Applications
- Pipe and Valve Marking
- Brand Name
- Brady®
- Compatible Surface Types
- Curved; Rough
- Language
- English
- Pipe Marker Mounting Style
- Wrap Around
- Pre-Printed Areas on Label
- Pipe Contents
- Printer and Label Applications
- Pipe Marker
- Text Legend
- CHILLED WATER
- Indoor or Outdoor Use
- Outdoor Use
- Laminated
- Polyester Overlaminate
- Material Properties
- Self-laminating
- SAP B-Number
- B-689
- Character Height (in/ft/yd)
- 0.75 in
- Dimensions (Metric)
- 228.6 mm H
- Height (in/ft/yd)
- 9 in
- Maximum Outside Pipe Diameter (in/ft/yd)
- 2.375 in
- Maximum Service Temperature °C
- 120 °C
- Minimum Outside Pipe Diameter (in/ft/yd)
- 1.5 in
- Minimum Service Temperature °C
- -40 °C
- Overall Size
- Fits Pipes 1.5" Dia. Thru 2.375in Dia.
- Sign Size-General
- 9 in x 8 in
- Thickness (in/ft/yd)
- 0.006 in
- Width (in/ft/yd)
- 8 in
Arrow DirectionRight
ColorWhite on Green
Enables Industry ComplianceANSI A13.1-2007
Pictogram DescriptionDirectional Arrow Symbol
Pipe Marker StyleI
Primary Noun, Basic FunctionPipe Marker
Self-Adhesive Pipe Marker FormatDie-Cut
Brady Material NumberB-689
Label PropertiesHarsh Environment Labels
MaterialCoiled Plastic
Resistance PropertiesAbrasion-Resistant; Chemical-Resistant; UV-Resistant; Water-Resisitant
Average Outdoor Durability5 to 8 Years
Dimensions9 in H x 8 in W
Dimensions 29 in H x 8 in W
Height (mm/cm/m)228.6 mm
Maximum Outside Pipe Diameter (mm/cm/m)60.33 mm
Maximum Service Temperature °F248 °F
Minimum Outside Pipe Diameter (mm/cm/m)38.1 mm
Minimum Service Temperature °F-40 °F
Roll/Tape Size (in/ft/yd)9 in H x 8 in W
SizeI
Thickness (mm/cm/m)0.152 mm
Width (mm/cm/m)203.2 mm
Regulatory Information
- Contains CA PROP 65 Substance
- Yes Contains-Label not req.
- Contains Heavy Metal(s)
- Unavailable
- EU RoHS Compliance
- Not Applicable
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
