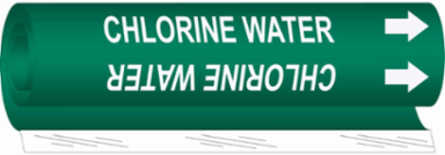

Brady 5813-II Chlorine Water Pipe Marker, 26" H x 12" W, Fits Pipes 2.5" Dia. Thru 7.875" Dia.
- MPN: 5813-II
- UPC: 754473670467
- PPN: BRD-5813-II
- UNSPSC: 55121737
CAD
$23.59
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
B-689 Pipemarkers from Brady® are coiled printed plastic sheets with sealed color graphics
Features
- Designed for use on rusty, dirty, wet or rough pipes where pressure sensitive labels cannot be used
- Style II wrap-around pipe markers fit pipes with outside diameter of 2-1/2" to 7-7/8"
- Resistant to UV light exposure, high humidity, high temperatures, abrasion, chemical reagents and physical agitation
- Excellent chemical resistance
Documentation & Downloads
Specifications
Key Specifications
| Applications | Pipe and Valve Marking |
|---|---|
| Brand Name | Brady® |
| Compatible Surface Types | Curved; Rough |
| Language | English |
| Pipe Marker Mounting Style | Wrap Around |
| Pre-Printed Areas on Label | Pipe Contents |
| Printer and Label Applications | Pipe Marker |
| Text Legend | CHLORINE WATER |
| Indoor or Outdoor Use | Outdoor Use |
| Laminated | Polyester Overlaminate |
| Material Properties | Self-laminating |
| SAP B-Number | B-689 |
| Character Height (in/ft/yd) | 1.25 in |
| Dimensions (Metric) | 66.04 cm H |
| Height (in/ft/yd) | 26 in |
| Maximum Outside Pipe Diameter (in/ft/yd) | 7.875 in |
| Maximum Service Temperature °C | 120 °C |
| Minimum Outside Pipe Diameter (in/ft/yd) | 2.5 in |
| Minimum Service Temperature °C | -40 °C |
| Overall Size | Fits Pipes 2.5" Dia. Thru 7.875in Dia. |
| Sign Size-General | 26 in x 12 in |
| Thickness (in/ft/yd) | 0.006 in |
| Width (in/ft/yd) | 12 in |
| Arrow Direction | Right |
|---|---|
| Color | White on Green |
| Enables Industry Compliance | ANSI A13.1-2007 |
| Pictogram Description | Directional Arrow Symbol |
| Pipe Marker Style | II |
| Primary Noun, Basic Function | Pipe Marker |
| Self-Adhesive Pipe Marker Format | Die-Cut |
| Brady Material Number | B-689 |
| Label Properties | Harsh Environment Labels |
| Material | Coiled Plastic |
| Resistance Properties | Abrasion-Resistant; Chemical-Resistant; UV-Resistant; Water-Resisitant |
| Average Outdoor Durability | 5 to 8 Years |
| Dimensions | 26 in H x 12 in W |
| Dimensions 2 | 26 in H x 12 in W |
| Height (mm/cm/m) | 66.04 cm |
| Maximum Outside Pipe Diameter (mm/cm/m) | 200.03 mm |
| Maximum Service Temperature °F | 248 °F |
| Minimum Outside Pipe Diameter (mm/cm/m) | 63.5 mm |
| Minimum Service Temperature °F | -40 °F |
| Roll/Tape Size (in/ft/yd) | 26 in H x 12 in W |
| Size | II |
| Thickness (mm/cm/m) | 0.152 mm |
| Width (mm/cm/m) | 30.48 cm |
Regulatory Information
| Contains CA PROP 65 Substance | Yes Contains-Label not req. |
|---|---|
| Contains Heavy Metal(s) | Unavailable |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
