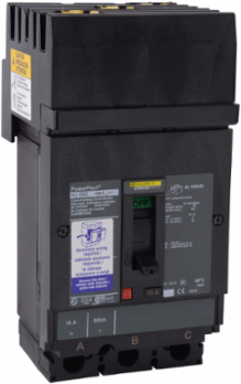

Square D HJA36125SA Circuit breaker, PowerPacT H, 125A, 3 pole, 600VAC, 25kA, I-Line, thermal magnetic, 80%, shunt, ABC
- MPN: HJA36125SA
- UPC: 785901429081
- PPN: SCH-HJA36125SA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PowerPacT H-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT H-Frame circuit breakers are available with either thermal magnetic or Micrologic electronic trip protection units. This PowerPacT H-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 25kA at 600VAC. All PowerPacT H-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT H circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. PowerPacT H I-Line circuit breakers are available in I-Line construction for easy installation and removal in I-Line applications. This breaker has I-Line terminations on the line side and mechanical lugs on the load side. This PowerPacT H, 125A, 3 pole, circuit breaker has a breaking capacity of 25kA at 600VAC. This circuit breaker has a continuous current rating of 80% with an ABC phase connection. This unit includes a factory installed 120VAC shunt trip. PowerPacT H circuit breakers comply to UL, CSA, NOM, and IEC standards and are CE marked.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Depth86 mm
Communications & Management Attributes
- Communication Interface
- Modbus, Ethernet
Physical Attributes
- Color
- Black
Wire Stripping Length16 mm
Complementary Attributes
- Line Rated Current
- 125-125 A
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Number Of Slots
- 2 auxiliary switch OF plug-in), 1 alarm switch SD plug-in)1 overcurrent trip switch SDE plug-in)1 voltage release MN or MX plug-in)
- Certificate Agency
- UL, CSA, NOM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.5721476294592285, 0.6 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.027415918034155586, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 240 kg CO2 eq., 240.20531280760633
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Circuit Breaker Application
- HACR rated
- Control Type
- toggle
- Electrical Connection
- I-Line connection, linelugs, load
- Local Signalling
- switched off (OFF) 1 trip indicator green)
- Magnetic Tripping Current
- 1700-1700 A
- Mounting Support
- bracket
- Number Of Poles
- 3P
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- circuit breaker
- Quality Labels
- CE
- Range
- PowerPact
- Software Version
- v6.2.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 260 kg CO2 eq.
- Utilisation Category
- category A
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Protect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; United States, US
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; United States, US
- Recyclability Potential In %
- 45
- Width Nominal
- 104 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Accessory / Separate Part Type
- shunt trip 110...130 V AC compartment
- Package Weight(Lbs)
- 2.722 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Tightening Torque5-5 N.m 2.5-6 mm² (14 AWG...10 AWG), 14-14 N.m 10-95 mm² (8 AWG...3/0 AWG)
[Ics] Rated Service Breaking Capacity100 kA 220/240 V AC 50/60 Hz IEC 60947-265 kA 380/440/415 V AC 50/60 Hz IEC 60947-225 kA 500/525 V AC 50/60 Hz IEC 60947-2, 20 kA 250 V DC IEC 60947-2, 20 kA 500 V DC IEC 60947-2
Carbon Footprint Of The End-of-life Phase [C1 To C4]5 kg CO2 eq., 5.089824783493677
Carbon Footprint Of The Manufacturing Phase [A1 To A3]14 kg CO2 eq., 13.851951005726855
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2206027_V2
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2539
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Awg Gauge14 AWG...3/0 AWG aluminium/copper terminal
Continuous Current Rating80 %
Device Applicationdistribution
Energy Efficiency OptimizedFalse
Magnetic Hold Current900 A
Mounting ModeI-Line bracket)
Network Frequency50/60 Hz
Phase ConnectionABC
Product NamePowerPact H
Protected Poles Description3t
Quantity Per Set1
ReturnabilityNo
Suitability For Isolationyes IEC 60947-2
Terminal IdentifierAL150HD
Trip Unit Technologythermal-magnetic
Pep CodeENVPEP2206027EN
Pep Verification Date2025-05-01
Psr VersionPSR-0005-ed3-2023 12 08
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal163 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-3
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-70 °C, -25-70 °C
- Operating Altitude
- < 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating< 6561.68 ft (2000 m) without derating, < 6561.68 ft (2000 m) without derating5000 m with derating
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2206027_V2
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-05-01
- Psr Version
- PSR-0005-ed3-2023 12 08
Ambient Air Temperature For Storage-50-85 °C, -50-85 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint259.74665214432025
Environmental DisclosureENVPEP2206027EN
Ip Degree Of Protectionfront cover IP40 IEC 60529
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2206027EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- circuit breaker
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Batteries & Runtime Attributes
- Removable Battery
- No
