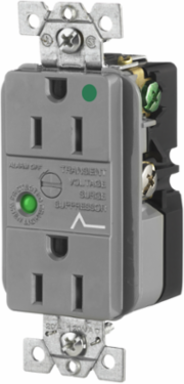

Bryant SP82GYA Hospital Grade Surge Suppression Receptacle, 15A 125V, 5-15R, Gray
- MPN: SP82GYA
- UPC: 781786139251
- PPN: HBL-SP82GYA
- UNSPSC: 39121610
CAD
$199.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Circuit Watch Surge Suppression Straight Blade Receptacle, Hospital Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Gray
Features
- 15A 125V
- 2-Pole 3-Wire Grounding
- 5-15R
- Gray
- Hospital Grade
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
- Current / Amperage Rating
- 15 A
- Amperage Rating
- 15 A
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Operating Temperature
- 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
- Phase
- Single Phase
- Special Features
- Hospital Grade
- Voltage Rating
- 125 V
- General Literature Asset 1 Display Text
- General Literature - Surge Protection Devices
- Connectivity
- Terminal Screws
- Nema Rating
- 5-15R
- Class Code
- Normal and Common Mode
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A44A420
- Current Rating
- 15 A
- Material
- Composite
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10
- Each - Pack Description
- Each
ColorGray
Width1.900 in
ApplicationDuplex with Light and Alarm
Frequency Rating60 Hz
OutletStraight Blade
Response Time5
TypeDuplex Receptacle
Voltage Rating Description125 V
General Literature Asset 2 Display TextGeneral Literature - Duplex Surge Receptacles
Display SizeStandard
StyleSurge Protection Only
Description - InvoiceDUP SPD RCPT, HG, 15A 125V, 5-15R, GY
Harmonization Code8536308000
MSDS FlagNo
Material - Mounting HardwareMounting Screws
Indicator(s) TypeLED and Audible Alarm
SeriesHospital Grade
BOX SIZE4.000x11.200x4.600 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786139251
Case Weight12.500 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
