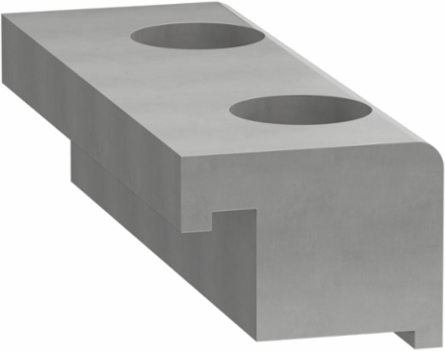

Schneider Electric VW33MF10814 Clamping Jaws for PAS44, TAS42/43, Support for 110-200 mm
- MPN: VW33MF10814
- PPN: SCH-VW33MF10814
CAD
$400.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
These clamping jaws from Schneider Electric are engineered to provide robust support for a variety of applications, particularly with the PAS44 and TAS42/43 systems. Designed to accommodate workpieces ranging from 110 to 200 mm, they ensure reliable and precise grip during automation and motion control tasks. This product is essential for enhancing the efficiency of your operations, allowing for improved stability and confidence in your setups. With their durable construction and tailored design, these clamping jaws are an integral component for achieving optimal performance in your automation projects.
Documentation & Downloads
Specifications
Additional
- Product Compatibility
- PAS 44 linear axis 110 x 110 mm || TAS 42 linear axis 150 x 54 mm || TAS 43 linear axis 200 x 59 mm
- Range Compatibility
- Lexium PAS || Lexium TAS
- Product Or Component Type
- clamping jaw
- Mercury Free
- Yes
- PVC Free
- Yes
- Reach Free Of Svhc
- Yes
- EU RoHS Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
- Country of Origin
- Germany
- Dimensions A
- 18 mm (0.71 in)
- Dimensions B1
- 20 mm (0.79 in)
- Dimensions H
- 22 mm (0.87 in)
- Dimensions L
- 76 mm (2.99 in)
- Diameter ØD1
- 15 mm (0.59 in)
Product Specific Applicationto mount portal axis on fixed support
Range Of ProductLexium linear motion
Warranty18 months
Toxic Heavy Metal FreeYes
RoHS Exemption InformationYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China RoHS ComplianceYes
Accessory / Separate Part Categorymaintenance accessories
Dimensions B28 mm (1.10 in)
Dimensions B210 mm (0.39 in)
Dimensions H112 mm (0.47 in)
Dimensions L140 mm (1.57 in)
Diameter ØD29 mm (0.35 in)
