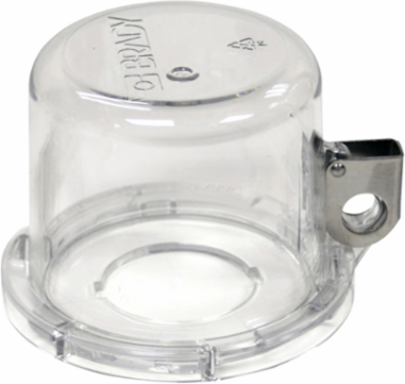

Brady 139796 Clear Push Button Lockout, Large Base + Medium Cover, Button 30 mm
Brady 139796 Clear Push Button Lockout, Large Base + Medium Cover, Button 30 mm
- MPN: 139796
- UPC: 754473932404
- PPN: BRD-139796
- UNSPSC: 39121908
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.16/ EA
Description

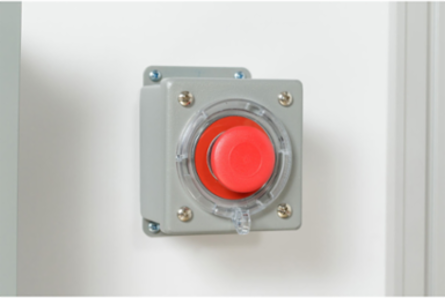

Push Button and E-Stop Safety Covers temporarily prevent access to the ON/OFF and engaged emergency stop controls for production and facility utility operating equipment.
Features
- Safety Covers quickly and efficiently secure facility production and operating equipment at the point of need
- Includes a permanently mounted base and a removable cover
- Equipping your employees with the proper lockout tools can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Specifications
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Not Applicable
- Contains 3TG Mineral
- Not Applicable
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantNo
SDS Safety Data Sheet requiredNo = MSDS/SDS is not required
Specifications
- Brand Name
- Brady®
- Button Type
- IEC; NEMA
- Country
- Global

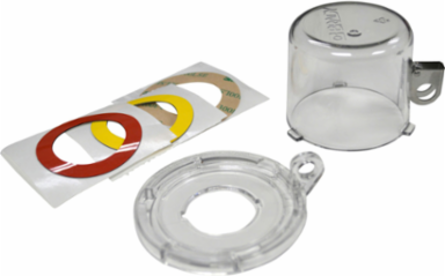

- Includes
- (1) Cover; (1) Yellow Label; (1) Adhesive Backing; (1) Base; (1) Red Label
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Piece
- Brady Material Number
- LOTO-72
- Lockout Material
- Polycarbonate
- Button Size
- 30.50 mm
- Depth (mm/cm/m)
- 73.66 mm
- Dimensions
- 2.2 in H x 2.9 in W x 2.9 in D
- Height (in/ft/yd)
- 2.2 in
- Hole Inside Diameter (mm/cm/m)
- 30.00 mm
- Maximum Shackle Diameter (in/ft/yd)
- 0.32 in
- Minimum Service Temperature °C
- -20 °C
- Size - W x H x D (mm)
- 30.00 x 55.88 x 73.66
- Width (in/ft/yd)
- 2.9 in
BrandedYes
ColorClear
Enables Industry ComplianceOSHA 1910.147

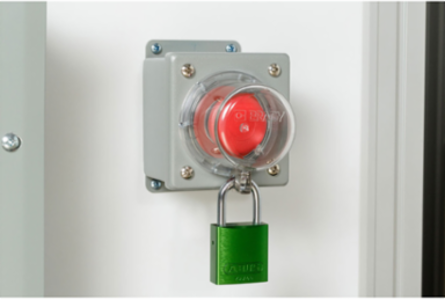

Maximum Number of Padlocks1
Risk TypeElectrical Risk; Mechanical Risk
Adhesive (Y/N)No
ConductiveNo
MaterialPolycarbonate
Depth (in/ft/yd)2.9 in
Diameter (mm/cm/m)73.00 mm
Dimensions (Metric)30.00 mm W x 55.88 mm H x 73.00 mm Dia x 73.66 mm D
Height (mm/cm/m)55.88 mm
Maximum Service Temperature °C80 °C
Maximum Shackle Diameter (mm/cm/m)8.13 mm
Sign Size-General2.2 in x 2.9 in
Size - Width (mm)30.00 mm
Width (mm/cm/m)73.66 mm
