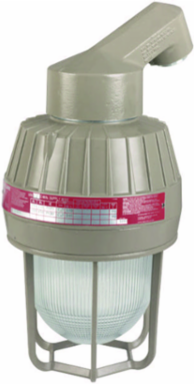

Killark EMH100D4G CLI 100W Metal Halide 1-1/4" Stanchion Mount with Guard
Killark EMH100D4G CLI 100W Metal Halide 1-1/4" Stanchion Mount with Guard
- MPN: EMH100D4G
- UPC: 783936148250
- PPN: HBL-EMH100D4G
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2318.66/ EA
Description
The EM series Explosion Proof medium base fixture is designed for low bay applications. This fixture is made with a cast copper-free aluminum housing and mount that is powder epoxy powder coat painted for extra corrosion resistance, making them suitable for harsh and hazardous environments. The EM Series is factory sealed so no external seal is required in Explosive environments.
Features
- Four light sources—Incandescent, compact fluorescent, high pressure sodium and metal halide
- Mounting choice—Pendant, ceiling, 25˚ stanchion or 90˚ wall mount, all with “wireless” design that allows fast, easy fixture installation
- Factory sealed—No external seal needed. Simply wire mounting cap and thread on fixture to install
- Compact size—Medium base incandescent and HID lamps, plus PL fluorescent lamps allow smaller fixture design
- Corrosion resistant—Copper-free aluminum die-cast construction.
- Baked powder epoxy finish, electrostatically applied.
- Exposed hardware is 316 grade stainless steel.
Specifications
Specifications
- Finish Type
- Powder Epoxy Paint
- Light Source
- Metal Halide
- Mounting Type
- Stanchion 25°
- Series
- EM
- Hub Size
- 1-1/4"
- Voltage Rating
- Quad - 120/277/347/480 VAC
Lamp TypeMedium Base
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Optic TypeGlass Globe - Fluted
UPC783936148250
Frequency Rating60 Hz
Wattage100 W
