Weidmuller 1568241679 CLI C 02-3 GE/SW U CD
- MPN: 1568241679
- PPN: WDM-1568241679
CAD
$0.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

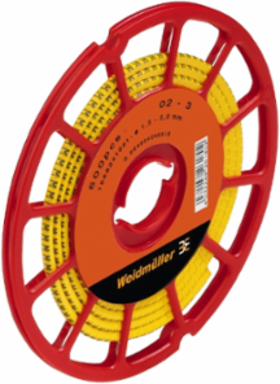

CableLine, Conductor and cable markers, 1.3 - 3 mm, 3 x 3.4 mm, yellow
Documentation & Downloads
Specifications
General Data
- Colour
- yellow
- Halogen
- Yes
- Material
- PVC, soft, without Cadmium
- Operating temperature range
- -30...80 °C
- Printed characters
- Upper-case letters
- Printing method
- hot-embossing
- Type of printing
- Standard
- Version
- CD
Colour of printingblack
Insulation cross-section, max.3 mm
Material colour according to resistance code4
Orientation of printhorizontal
PrintingU
Recommended industriesProcess, Machinery
UL 94 flammability ratingV-0
Width3.4 mm
Approvals
- ROHS
- Conform
Dimensions And Weights
- Width
- 3.4 mm
- Height
- 3 mm
- Depth
- 3.5 mm
- Net weight
- 0.062 g
Width (inches)0.134 inch
Height (inches)0.118 inch
Depth (inches)0.138 inch
Classifications
- ETIM 6.0
- EC001530
- eClass 9.0
- 27-40-04-01
- eClass 10.0
- 27-40-04-01
ETIM 7.0EC001530
eClass 9.127-40-04-01
UNSPSC44-12-17-08
Conductor And Cable Markers
- Conductor O.D.
- 1.3 - 3 mm
- Conductor O.D., min.
- 1.3 mm
- Conductor cross-section, min.
- 0.2 mm²
Conductor O.D., max.3 mm
Conductor cross-section, max.1.5 mm²
HalogenYes
