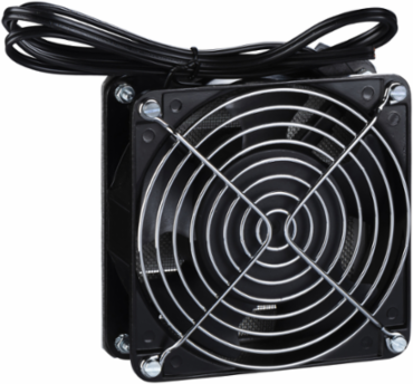

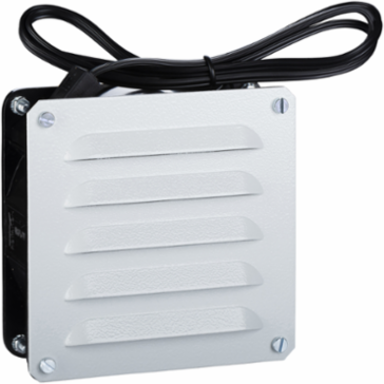

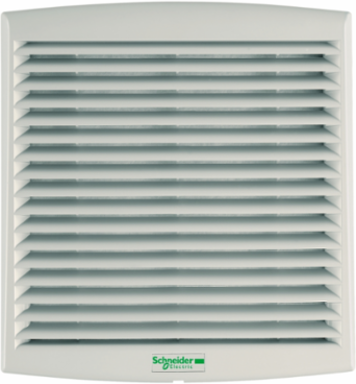

Schneider Electric NSYCVF54M230MM2 Climasys Ventilation Fan 54 m3/h, 230V, IP33 Protection, Metal Grilles
- MPN: NSYCVF54M230MM2
- PPN: SCH-NSYCVF54M230MM2
- UNSPSC: 39121324
CAD
$213.12
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Designed to enhance the efficiency of temperature management within enclosures, the Climasys Ventilation Fan by Schneider Electric is a robust solution that ensures optimal airflow. Operating at an impressive capacity of 54 m3/h, this fan is equipped to maintain suitable conditions even in demanding environments. With a reliable 230V power supply and IP33 protection, it is built to withstand various conditions while the metal grilles provide added durability. Ideal for use in electrical boxes and enclosures, this ventilation fan is essential for those looking to safeguard sensitive components against overheating.
Features
- 22 W 50 Hz, 20 W 60 Hz
- Connections terminals by cable
- Cut-out dimensions of 3.8in x 3.8in
- Ext Dimensions : 4.7in x 4.7in x 1.5in
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | France |
|---|
| Weight | 1035 g |
|---|
Physical Attributes
| Color | outlet grille Gray RAL 7035) |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |

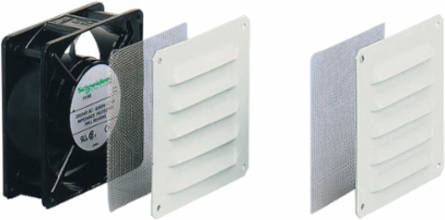

| Device Composition | 1 axial motor, 1 power cord2 anti-insect filter, 2 metal louvre |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 2 kg CO2 eq., 1.5437021586682294 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 7 kg CO2 eq., 6.721458572628 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Or Component Type | fan |
| Returnability | No |
| Sustainable Packaging | No |
| Type Of Ventilation Filter | anti-insect |
| Database Version | 2024-01 |
| Height Nominal | external: 120 mm |
| Nbr. Of Units In Pkg. | 1 |
| Cut Out Dimensions | 96 x 96 mm |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Recyclability Potential In % | 64 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The Distribution Phase A4 | 2.0511770062685244, 2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.11502351359088266, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 1 023 kg CO2 eq., 1023.2842503464 |
| Local Publishable Date | 2025-04-05 |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1107017EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Material | outlet grille steelfilter stainless steel 304L |
| Product Name | ClimaSys CV |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 1 034 kg CO2 eq. |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | external: 120 mm |
| Customs Code | 8414596590 |
| Silicone Free | Yes |
| Functional Unit Description | "Transfer 1 m3 of air per hour for the ventilation and air treatment and smoke exhaust and filtration of a building/Confined space over the reference lifetime of 17 years. " |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 2531.64 |
Environment Attributes Main
| Air Flow | free flow rate without filter or grille: 170 m3/h, overall flow rate: 54 m3/h at 50 Hz |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 1033.7156115975556 |
| Environmental Disclosure | ENVPEP110717EN |
| Ip Degree Of Protection | IP33 |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP110717EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | Yes |
| Circularity Profile | ENVEOLI1107017EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-08-05 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
General Attributes
| Product Or Component Type | fan |
|---|
ETIM
| ETIM 8 | EC000320 |
|---|---|
| ETIM 10 | EC000320 |
| ETIM 9 | EC000320 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
Input Attributes
| Input Voltage | 230 V 50/60 Hz |
|---|
