Steel City SSF-CC1 1/2-H1/2 Clip, Flange-Mount Conduit 1-1/2 Inch, Steel, Flange Thickness 5/16 Inch - 1/2 Inch
Steel City SSF-CC1 1/2-H1/2 Clip, Flange-Mount Conduit 1-1/2 Inch, Steel, Flange Thickness 5/16 Inch - 1/2 Inch
- MPN: SSF-CC1 1/2-H1/2
- PPN: T-B-SSF-CC1 1/2-H1/2
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$10.01/ EA
Description

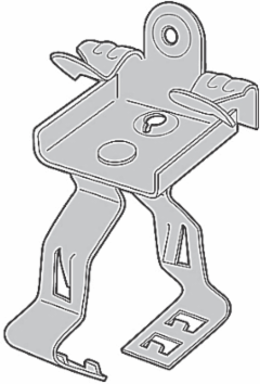

Clip, Flange-Mount Conduit, Conduit Size 1-1/2 Inch, Flange Thickness 5/16 Inch - 1/2 Inch, Steel
Features
- Available with Spring Steel Conduit clip bottom mounted or side mounted.
- Available for 3/8 Inch through 2 Inch trade sizes for EMT, rigid, Flexible conduit and MC/AC cable.
- Fits beam flanges 1/8 Inch through 3/4 Inch thick.
- Will pivot through 360 degrees
Specifications
European Specifications (ETIM)
- ETIM
- EC000464 Fixing clamp
- Flange thickness
- 7.9375-12.7mm
- Hinge adjustable
- N
Type of fasteningEdge clip
HingingN
MaterialSteel
North American Specifications (UNSPSC)
- UNSPSC
- 39121701 Electrical hangers
- Brand Name
- Steel City
- Special Features
- Available with Spring Steel Conduit clip bottom mounted or side mounted
- Material
- Steel
IGCC5027 Hanger for trapezoidal ceiling
TypeClip, Flange-Mount Conduit
Size1-1/2 Inch
Packaging
- Inner Quantity
- 25
- Outer Quantity
- 225
- Weight Uom
- 12.5 lbs. per 100
Inner Dimensions (inches)10x8.5x5
Outer Dimensions (inches)26x17.5x10.12
