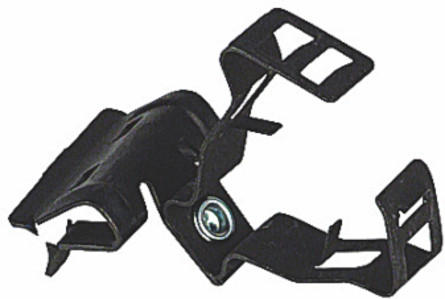

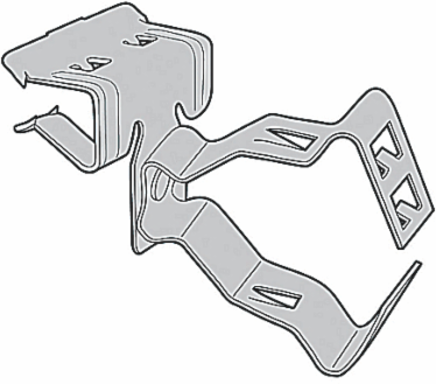

Steel City SSF-CC3/8-F1/2 Clip, Flange Side Mount Conduit 3/8 Inch, Steel, Flange Thickness 5/16-1/2 Inch
- MPN: SSF-CC3/8-F1/2
- UPC: 785991203196
- PPN: T-B-SSF-CC3/8-F1/2
CAD
$7.50
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clip, Flange Side-Mount Conduit, Conduit Size 3/8 Inch and 14-2 through 12-3 MC/AC Cable, Flange Thickness 5/16 Inch - 1/2 Inch, Steel
Features
- Available with Spring Steel Conduit clip bottom mounted or side mounted.
- Available for 3/8 Inch through 2 Inch trade sizes for EMT, rigid, Flexible conduit and MC/AC cable.
- Fits beam flanges 1/8 Inch through 3/4 Inch thick.
- Will pivot through 360 degrees
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121701 Electrical hangers |
|---|---|
| Brand Name | Steel City |
| Special Features | Available with Spring Steel Conduit clip bottom mounted or side mounted |
| Size | 3/8 Inch |
| IGCC | 5027 Hanger for trapezoidal ceiling |
|---|---|
| Type | Clip, Flange Side Mount Conduit |
| Standard | UL e160899 |
| Material | Steel |
Packaging
| Inner Quantity | 25 |
|---|---|
| Outer Quantity | 250 |
| Weight Uom | 9.38 lbs. per 100 |
| Inner Dimensions (inches) | 8.25x5.25x4.25 |
|---|---|
| Outer Dimensions (inches) | 21x10.5x8.25 |
European Specifications (ETIM)
| ETIM | EC000464 Fixing clamp |
|---|---|
| Flange thickness | 7.9375-12.7mm |
| Hinge adjustable | N |
| Type of fastening | Edge clip |
|---|---|
| Hinging | N |
| Material | Steel |
