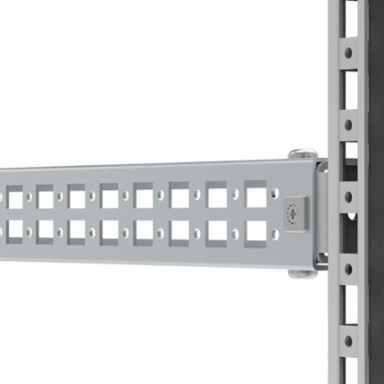

nVent Hoffman CLPF1000 Mounting Profiles 40x925x25mm Zinc Plated Mild Steel, Max Load 1000 N

MPN: CLPF1000
UPC: 783510459376
PPN: HOF-CLPF1000
UNSPSC: 39121321

$577.23

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Mounting profiles mount in all directions, providing full mounting flexibility of components. This Mounting profiles, CLPF, CLPF1000 item measures 40x925x25mm with a material of Mild Steel, finish Zinc Plated.

Features

Description: The CLPF profile system is a 40 mm wide and 25 mm high profile, which can be mounted in all directions on the enclosure's frame. It can also be used in combination with the CLPK and the VB profiles. By turning the profile it can be used as a standard CP20/40 profile in combination with GLM 40/6 sliding nut, to mount installation material which needs adjusting in depth. The profiles, when mounted onto the enclosure's frame are flush with the enclosure's profiles. Two rows of hole patterns for cage nut fixing and self tapping screws are provided. For 90 mm wide profiles two profiles can be mounted next to each other.
Material: Zinc plated steel.
Pack quantity: 4 profiles including snap-line for fixing.

Documentation & Downloads

Specifications

Key Specifications

BABA	Contact Manufacturer
Width (W)	925
Compatible Enclosure Height	47.24
Compatible Enclosure Depth	1,000
Max Load Horizontal	1000 N
Product Family	Free-Standing
Thickness (T)	1.5
Weight	3.6
Material	Mild Steel
Color	Unpainted
Consist of	Mounting profiles; Mounting Components and Instruction Manual

Height (H)	40
Depth (D)	25
Compatible Enclosure Width	1,000
Max Load Horizontal C	800 N
Works With	IEC
Finish	Zinc Plated
Package Quantity	4
Enclosure Material	Mild Steel
Size	1.57 x 36.4 x 0.98 inch
Construction	16 gauge
