nVent Hoffman CLPK300 Mounting Profile 300mm, Zinc Plated Mild Steel, 74mm Height, Max Load 2000 lbs
- MPN: CLPK300
- UPC: 783510459857
- PPN: HOF-CLPK300
- UNSPSC: 39121321
CAD
$262.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

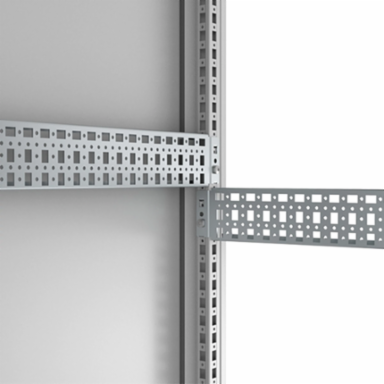

Click-In Profiles, CLPK allow accessories and electrical components be installed where required and reduces mounting time. This Click-In Profiles, CLPK, CLPK300 item measures 74x300x26mm with a material of Mild Steel, finish Zinc Plated.
Features
- Description: Universal profile for both depth and width fitting on the 25 mm DIN hole pattern of the enclosure's frame or in combination with the CLPF and VB profiles. The 75 mm wide profile is equipped with three rows of holes of which one is turned 90º. This makes it possible to mount the CLPF profiles in both directions. The CLPK can be secured by the use of self tapping screws.
- Material: 1.5 mm zinc plated steel.
- Pack quantity: 4 profiles.
Documentation & Downloads
Specifications
Key Specifications
| BABA | Contact Manufacturer |
|---|---|
| Width (W) | 300 |
| Load Rating | 2,000 |
| Product Family | Free-Standing |
| Thickness (T) | 1.5 |
| Weight | 1.5 |
| Material | Mild Steel |
| Color | Unpainted |
| Consist of | Click-In Profiles; Mounting Components and Instruction Manual |
| Height (H) | 74 |
|---|---|
| Depth (D) | 26 |
| Works With | IEC |
| Finish | Zinc Plated |
| Package Quantity | 4 |
| Enclosure Material | Mild Steel |
| Size | 2.91 x 11.82 x 1.02 |
| Construction | 16 |
