Multi-Purpose Articulated Tube Joint, 50 mm Square, 4.25 kg Load, 170 Angle
Multi-Purpose Articulated Tube Joint, 50 mm Square, 4.25 kg Load, 170 Angle
Schneider Electric

Schneider Electric NSYCMUIA50 Multi-Purpose Articulated Tube Joint, 50 mm Square, 4.25 kg Load, 170 Angle

  • MPN: NSYCMUIA50
  • PPN: SCH-NSYCMUIA50

CAD

$1228.49

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

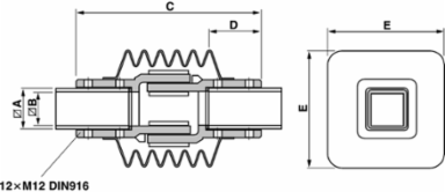

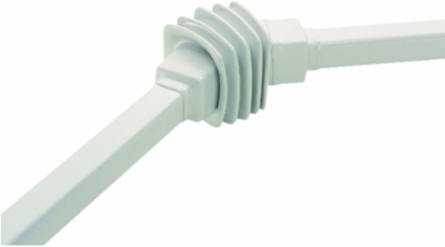

Spacial S3CM HMI articulated tube joint. 147 x 236 mm. Multi-purpose tube adaptor. Mounting between 2 horizontal tubes. For 50 mm square tube, option of passing cables through the inside. Op angle is 170°. Load is 4.25 kg. Moulded steel, epoxy-polyester powder finish. Grey RAL 7035.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Germany, Spain
Width
5.83 in
Height5.83 in
Depth236 mm

Physical Attributes

Color
Gray RAL 7035)

Important Information Attributes

Persona Type Ids
LC, OM, OM8, PB, SI
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Device Composition
fixing elements1 linking and rotating bracket, 1 bellow
Mounting Support
for 50 mm square tube, option of passing cables through the inside
Local Publishable Date
2025-12-11
Stocking Flag
Y
Weee Scope
Out
Eoli Availability Display
No need of specific recycling operations
Reach Full Compliance Status Id
NOT_CONTAINING_SVHC
Rohs Eur In Scope
No
Rohs Eur Conformity Date
1916
China Rohs In Scope
No
With Recycled Cardboard
No
Product Contributes To Saved And Avoided Emissions
No
Tier
2
Function Option
Standard
Device Application
multi-purpose
Fixing Mode
by fixing element M12 - horizontal tube
Mounting Location
between 2 horizontal tubes
Permanent Permissible Load
4.25 kg
Product Or Component Type
tube adaptor
Range
PanelSeT
Surface Finish
epoxy-polyester powder
Pep Code
ENVPEP1001004EN
Height Useful
148 mm
Width Real
148 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Customs Code
7326908688
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Materialmoulded steel
Operating Angle170 °
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Height Nominal148 mm
Width Nominal148 mm
Accessory / Separate Part Categorycable management accessory
Package Weight(Lbs)4.656 kg
Warranty (In Months)18

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
Reach Free Shvc
Yes
Toxic Heavy Metal Free
Yes
Environmental Disclosure
ENVPEP1001004EN
Packaging Made With Recycled Cardboard
No
Reach Free Of Svhc
Yes
Pep Code
ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold

General Attributes

Product Or Component Type
tube adaptor

ETIM

ETIM 8
EC002620
ETIM 9EC002620

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
