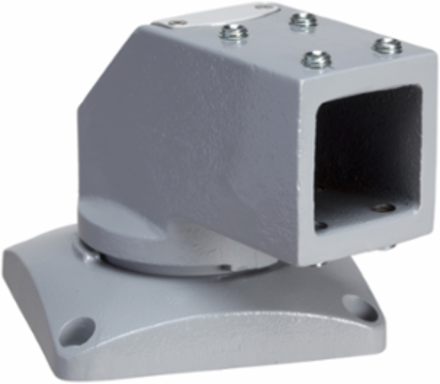

Schneider Electric NSYCMUMC50 Horizontal Rotating Bracket, 50 mm Square, 295 Angle, Aluminium, 5.56 kg
- MPN: NSYCMUMC50
- PPN: SCH-NSYCMUMC50
CAD
$1296.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

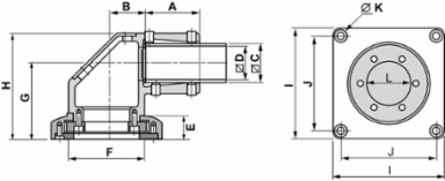

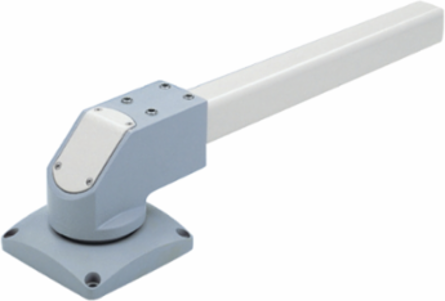

Spacial S3CM HMI horizontal rotating bracket, square 50mm. H: 134 x 140 x 164 mm. Fixing on support. Mounting between tube and support, in horizontal position . Operating angle: 295°. Permanent permissible load: 5.4 kg. Aluminium, epoxy-polyester powder finish. Grey RAL 7040. set of 1.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 5.28 in
- Country of Origin
- Brazil, Germany, Spain, United States
Width5.51 in
Depth164 mm
Physical Attributes
- Color
- Gray RAL 7040)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Enclosure Nominal Dimensions
- -, -
- Mounting Support
- option of passing cables through the inside, for 50 mm square tube
- Local Publishable Date
- 2025-12-11
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Device Application
- multi-purpose
- Energy Efficiency Optimized
- False
- Mounting Location
- between tube and support
- Permanent Permissible Load
- 5.4 kg
- Product Or Component Type
- fixing on support
- Range
- PanelSeT
- Surface Finish
- epoxy-polyester powder
- Pep Code
- ENVPEP1001004EN
- Height Useful
- 134 mm
- Width Real
- 140 mm
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 7326908688
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Fixing Modeby fixing element M12 - horizontal tube, by 4 screws M9 - on support
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Device Compositionfixing elements1 fixing and rotating bracket
Materialmoulded steel
Operating Angle295 °
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quantity Per Setset of 1
ReturnabilityNo
Sustainable PackagingNo
Height Nominal134 mm
Width Nominal140 mm
Accessory / Separate Part Categorymounting accessory
Package Weight(Lbs)5.750 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP1001004EN
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1001004EN
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- fixing on support
ETIM
- ETIM 8
- EC002620
ETIM 9EC002620
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
