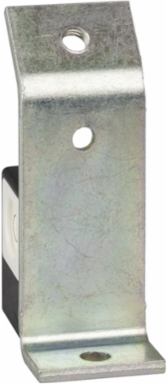

Schneider Electric DZ5MS10 Support Bracket, Zinc Coated Steel, Mercury Free, Set of 10
- MPN: DZ5MS10
- PPN: SCH-DZ5MS10
CAD
$4.08
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This set of support brackets from Schneider Electric is crafted from zinc-coated steel, ensuring both durability and resistance to corrosion in various environments. Designed for versatility, these brackets are mercury-free, making them an eco-friendly choice for your electrical installation needs. With a total of ten brackets included, they provide reliable support and stability for electrical boxes and enclosures, helping you achieve a secure and organized setup. Ideal for use in both residential and commercial applications, the DZ5MS10 brackets are an essential accessory for anyone looking to enhance their electrical infrastructure.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China, France, Mexico |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Mounting Location | on structure of enclosure, on mounting plate |
| Carbon Footprint Of The Distribution Phase [A4] | 0.010587406, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.01219537, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-15 |
| Stocking Flag | N |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Device Application | multi-purpose |
| Material | zinc coated steel |
| Product Or Component Type | support bracket |
| Range | PanelSeT |
| Software Version | v5.9.4 |
| Total Lifecycle Carbon Footprint | 0.4 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Accessory / Separate Part Category | mounting accessory |
| Package Weight(Lbs) | 54.000 g |
| Take-back | No |
| Customs Code | 7326908688 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Mounting Support | DIN rail, earthing bar |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0.1 kg CO2 eq., 0.129296618 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0.2 kg CO2 eq., 0.238981516 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | set of 10 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Pep Code | ENVPEP1109023EN |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 98 |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | No |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | No |
| Environmental Disclosure | ENVPEP1109023EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP1109023EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Carbon Footprint | 0.391060909 |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-03-30 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
General Attributes
| Product Or Component Type | support bracket |
|---|
ETIM
| ETIM 8 | EC002625 |
|---|
| ETIM 9 | EC002625 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
