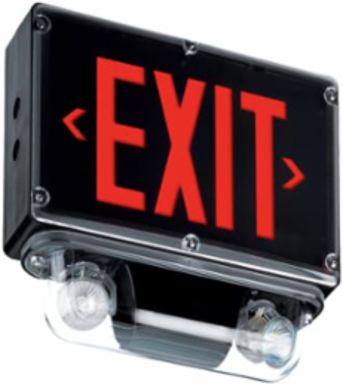

Lumacell 3LER35002LD1WH COMBO 6V SGL RD W/LED 4W

MPN: 3LER35002LD1WH
UPC: 624616261398
PPN: T-B-3LER35002LD1WH
UNSPSC: 39111707

$1650.00

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Exit Combination Unit, single face, 120/347VAC, auto-diagnostics, non-audible, Voltage DC: 6V, Battery Type: nickel-cadmium, Battery Wattage: 36W, self-powered, two lamps, Lamp Type: MR16 LED, Lamp Voltage: 6V, Lamp Wattage: 4W, Housing Colour: white, Faceplate Colour: white, non audible, Legend Colour: red, Unit Type: NEMA-4X & NSF, Head Style: shielded, Battery Run Time: 30 minutes

Specifications

Installation

Instructions and Manuals	3LER35002LD1WH

Dimensions

Product Net Width	4-5/8 in
Product Net Depth / Length	13-1/4 in
Size	12-5/8 Inches Height x 14 Inches Width

Product Net Height	12-5/8 in
Product Net Weight	11.000745 lb4.989 kg

Technical

Standards	CSA
Special Functions	Comes standard with tamper proof screws
Power Consumption (@Pcons)	36 W
Number of Lamps	2
Mounting Type	Universal
Material	Frame: Polyvinyl chloride / Faceplate: Polycarbonate
Color	Aluminum
Text Color	Red
Battery Weight	2.5 lb

Application	Industrial
Voltage Rating	120/347 V AC6 V DC
Power Watt	4 W
Lamp Type	MR16 LED
Product Type	Exit Combination Unit
Legend	On
Housing Color	White
Battery Chemical Composition	Nickel-Cadmium
Number of Batteries	1

Classifications

WEEE Category	Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)	3938 >> Combo light unit exit

eClass	V11.0 : 27110305

Environmental

RoHS Status	No declaration needed

REACH Declaration	No declaration needed

Ordering

Minimum Order Quantity	1 piece
Package Level 1 Gross Weight	13.5 lb

Package Level 1 Units	box 1 piece
