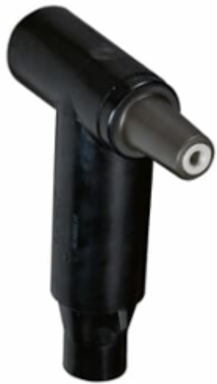

Thomas & Betts K655CCP-M0380 COMBO T, CONNECTOR 15-25KV,600A
- MPN: K655CCP-M0380
- UPC: 783786024247
- PPN: T-B-K655CCP-M0380
- UNSPSC: 39121421
CAD
$1678.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
15/25kV, 600 Amp, no test point, Combo T Connecting Plug with Stud, Cable Adapter and Lug Kit. Cable Insulation Diameter 1.370 inch to 1.630 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 700/750 /Compacted Solid 900.
Specifications
Additional Information
| Brand / Label | Elastimold |
|---|---|
| Connection Type | Compression |
| Effective Date | 20130312 |
| Insulation Material | Yes, EPDM Rubber |
| Product Name | ELECTRICAL CONNECTOR,>1000V |
| Size | 10 inches Wide, 10.87 inches from bottom to center of Plug |
| Standards | ANSI/IEEE Standard 386 |
| Color | Black |
|---|---|
| Current Rating | 600 A |
| Includes | Elbow Housing, Stud, Compression Lug, Cable Adapter, Lubricant, Installation Instructions, Crimp Chart |
| Material | Housing - EPDM Rubber |
| Product Type | ComboT Connecting Plug |
| Special Functions | The hollow bore of the ComboT allows visual validation that the compression lug is positioned properly before the snuffer/bus is inserted and tightened. |
| Voltage Rating | 15 to 25 kV |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4586 >> Electrical connector assembly |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
