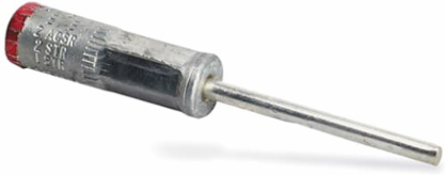

Blackburn PKL66-1 Pigtail Compression Sleeve Terminal 4/0, 35 kV, 0.365 x 6 Inch
Blackburn PKL66-1 Pigtail Compression Sleeve Terminal 4/0, 35 kV, 0.365 x 6 Inch
- MPN: PKL66-1
- UPC: 783786047048
- PPN: T-B-PKL66-1
- UNSPSC: 39121458
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$45.80/ EA
Description
Compression Pin Terminal Aluminum, Contax filled for Wire Range 4/0 ASCR, 4/0 Stranded, Pigtail: 0.365 x 6, Mechanical Dies: 840, K840, TX, Hydraulic Dies: 840, B48EA, EEI 11A, K840, U249, 76
Specifications
Additional Information
- Application
- Designed for use in joining Aluminum Secondaries and Services to Copper Transformer Bushings
- Connection Type
- Compression
- Insulation Material
- None
- Mounting Type
- None
- Pigtail Size
- 23/64 x 6 in
- Product Type
- Pigtail Compression Sleeve
- Special Functions
- Sleeves are Highly Conductive Aluminum. Pigtails are Solid Copper, Tin-Plated. Installed with Standard Tools and Dies. Prefilled with Oxide Inhibitor.
- Voltage Rating
- 35 kV
Brand / LabelBlackburn
Effective Date19991027
MaterialAluminum Sleeve, Pre-attached Copper Pigtail
Number of Conductors2
Product NameELECTRICAL TERMINAL
SizeSleeve Length 3-1/2 inches
Surface FinishingTinplated Pigtail
Classifications
- WEEE Category
- Product Not in WEEE Scope
IDEA Granular Category Code (IGCC)4685 >> Wire or cable compression reducer
Ordering
- Country of Origin
- Mexico (MX)
Selling Unit of Measureeach
