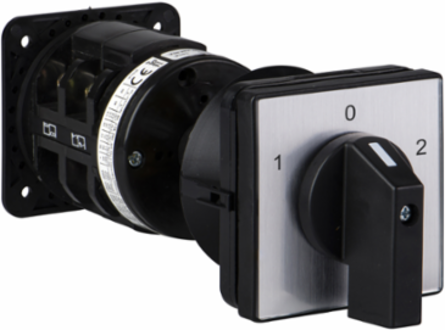

Schneider Electric K50E003WP Harmony K Cam Reversing Switch 3 Poles 50A 64x64mm Front Mounting
- MPN: K50E003WP
- PPN: SCH-K50E003WP
CAD
$242.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
This metal head cam switch is designed to meet most industrial and process control application thanks to a compact size and has several selection functions It has a 60 or 300 degree between its switching positions It works at a rated conventional free air thermal current of 50 A
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Austria, France
Physical Attributes
- Cad Overall Depth
- 120 mm
- Cad Overall Width
- 64 mm
Cad Overall Height64 mm
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Connection
- captive screw clamp terminals flexible 2 x 6 mm², captive screw clamp terminals solid 2 x 10 mm²
- Switching Capacity In Ma
- 30000 mA DC 60 V 2 inductive 50 ms), 37000 mA DC 180 V 3 resistive 1 ms), 37000 mA DC 60 V 1 resistive 1 ms), 40000 mA DC 48 V 1 resistive 1 ms), 40000 mA DC 48 V 2 inductive 50 ms), 40000 mA DC 95 V 2 resistive 1 ms), 50000 mA DC 48 V 2 resistive 1 ms), 50000 mA DC 70 V 3 resistive 1 ms)15000 mA DC 120 V 2 inductive 50 ms), 15000 mA DC 180 V 3 inductive 50 ms), 15000 mA DC 60 V 1 inductive 50 ms), 20000 mA DC 140 V 3 inductive 50 ms), 20000 mA DC 48 V 1 inductive 50 ms), 20000 mA DC 95 V 2 inductive 50 ms), 30000 mA DC 30 V 1 inductive 50 ms), 30000 mA DC 90 V 3 inductive 50 ms), 3500 mA DC 110 V 1 inductive 50 ms), 3500 mA DC 220 V 2 inductive 50 ms), 3500 mA DC 330 V 3 inductive 50 ms), 37000 mA DC 120 V 2 resistive 1 ms), 40000 mA DC 140 V 3 resistive 1 ms), 40000 mA DC 24 V 1 inductive 50 ms), 40000 mA DC 70 V 3 inductive 50 ms), 50000 mA DC 24 V 1 resistive 1 ms)
- Certificate Agency
- cULus 240 V 7.5 hp 3 phasecULus 120 V 3 hp 1 phase, cULus 480 V 25 hp 3 phase, cULus 240 V 7.5 hp 1 phase
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Weee Product Category
- 5
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Cam Switch Function
- reversing switch
- Compatibility Code
- K50E
- Contact Operation
- slow-break
- Mechanical Durability
- 300000 cycles
- Off Position
- with Off position
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- complete cam switch
- Range Of Product
- Harmony K
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Tightening Torque
- 2 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- [Ith] Conventional Free Air Thermal Current
- 50 A
- Short-circuit Current
- 5000 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Electrical Shock Protection Classclass II conforming to IEC 60536, class II conforming to NF C 20-030
Switching Positionsright: 0° - 60°, left: 0° - 300°
[Uimp] Rated Impulse Withstand Voltage6 kV EN 947-1, 6 kV IEC 947-1
Local Publishable Date2026-01-12
Stocking FlagY
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Cam Switch Head Typewith front plate 64 x 64 mm
Component NameK50
Fixing Mode4 holes
Number Of Poles3P
Positive Openingwith
Product Mountingfront mounting
Protective TreatmentTC
Returnwithout
Rotary Handle Padlockingwithout
Switching Angle60 °
Type Of OperatorBlack handle
Pep CodeENVPEP2312055EN
[Ui] Rated Insulation Voltage690 V 3)IEC 60947-1
Short-circuit Protection63 A cartridge fuse gG
Package Weight(Lbs)368.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -25-55 °C, -25-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Environmental Disclosure
- ENVPEP2312055EN
- Ip Degree Of Protection
- IP40 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2312055EN
General Attributes
- Product Or Component Type
- complete cam switch
Range Of ProductHarmony K
ETIM
- ETIM 8
- EC001105
ETIM 9EC001105
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Presentation Of Legend
- with metallic, 1 - 0 - 2 black
