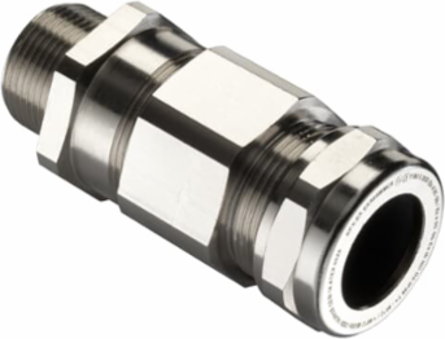

Kopex-ex EXN05AC5 Compound Barrier Cable Gland

MPN: EXN05AC5
UPC: 786210200767
PPN: T-B-EXN05AC5

$149.12

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Compound Barrier Cable Gland, 3/4 Inch NPT Thread, For Use with Armoured Cable (SWA, SWB, AWA), Flameproof Ex d and Increased Safety Ex e, Suitable for Use in Zones 1, 2, 21, and 22, IP66 Rating, Cable Range 16 to 21mm, Nickel Plated Brass

Specifications

North American Specifications (UNSPSC)

UNSPSC	39121431 Cable gland connector
Brand Name	Kopex
Application	For Use with SWA (Steel Wired Armoured), AWA (Aluminum Wired Armour), and SWB (Steel Wired Braid) Conduit to Provide Secure Cable Connections Through Knockouts and Threaded Entries
Size	3/4 Inch NPT
Material	Brass
Color	Metallic
Temperature Rating	-60 to 60 Degrees C

IGCC	4601 Cable gland connector
Type	Compound Barrier Cable Gland
Standard	Approved to EN60079-0, 60079-1, 60079-7, 60079-31
Conductor Range	16 to 21 Millimeters
Finish	Nickel Plated
Insulation	IP66 Rating
Environmental Conditions	Flameproof Ex d and Increased Safety Ex e, Suitable for Zones 1, 2, 21, 22

European Specifications (ETIM)

ETIM	EC000441 Cable screw gland
Nominal thread size inch/gas pipe thread	3/4 inch
Hexagon angular dimension	37mm
Material	Metal
Surface protection	Nickel-plated
Glass-fibre reinforced	N
Shock resistant	N
Bend radius protection/trumpet flare	N
Model	Straight
Strain relief	N
Explosion-tested version	Y
For Ex-Zone dust	21, 22

Thread type	NPT
Thread length	21mm
Suitable for cable diameter	16.0-21.0mm
Material quality	Brass
Halogen free	N
Degree of protection (IP)	IP68
Colour	Natural colour
With locknut	N
Flat cable coupling	N
Operating temperature	-60-+60°C
For Ex-zone gas	1, 2
EMC-version	N
