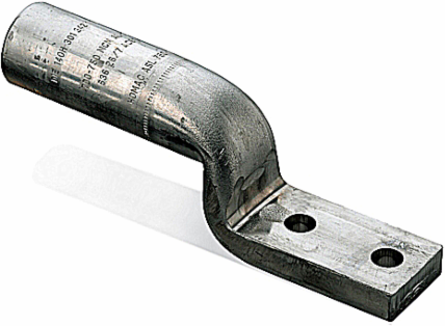

Blackburn ASL 1000 SSN Aluminum Two-Hole NEMA Lug Stacking
- MPN: ASL 1000 SSN
- UPC: 783786696345
- PPN: T-B-ASL 1000 SSN
CAD
$188.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Two-Hole NEMA Lugs - stacking lug, concentric 1000, ACSR 795 (26/7,30/19) and 954 (45/7), installing dies 161,292,302,319,1 3/4
Features
- Dual-Rated for Use with Aluminum and Copper Conductors.
- Made of Aluminum for High Strength and High Conductivity.
- Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
- All Lugs Marked with Conductor Size and Die References for Easy Identification.
- Meets or Exceeds ANSI C119.4 Specifications.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121448 Wire or cable compression connector |
|---|---|
| Brand Name | Blackburn |
| Special Features | Made from Aluminum which provides high strength and high conductivity. Dual-rated. Use with Aluminum and Copper conductors. Prefilled with oxide inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die reference for easy identification. |
| Standard | ANSI C119.4 |
| Conductor Range | 1000 |
| IGCC | 4668 Wire or cable compression connector |
|---|---|
| Type | Aluminum Two-Hole NEMA Lug Stacking |
| Application | General purpose lugs for Aluminum and Copper terminations. |
| Size | Length 9-7/8 inches X 2-7/8 inch wide |
| Material | Aluminum |
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 1.6 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
