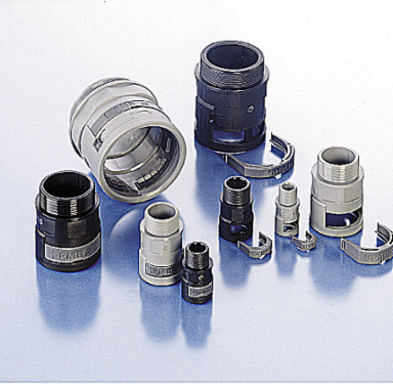

PMA BVNV-G000 Fittings for Nylon Flexible Conduits
- MPN: BVNV-G000
- UPC: 786209952189
- PPN: T-B-BVNV-G000
CAD
$6.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
VN Straight Connector, GS Thread for IP68 Static Conduit - Thread GAS 1/4 Inch, Fits to Conduit Size NW/Metric 10/12, Color Black
Documentation & Downloads
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- Other
- Thread length
- 11mm
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit UR
- N
- Approved in combination with protective conduit Lloyd's Register
- N
Nominal diameter12mm
ModelStraight
Construction typeInternal thread
Thread typeGas-thread
Thread materialPolyamide
Total length36.5mm
Material sealingNo sealing
Approved in combination with protective conduit CSAN
Approved in combination with protective conduit DIN EN 61386-23N
Operating temperature-40 - +105°C
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- PMA
- Application
- For Cable Protection Systems In a Wide Range of Applications
- Size
- NW10
- Insulation Class
- IP68
- Connection
- 1/4 Inch
IGCC4441 Electrical fittings
TypeFittings for Nylon Flexible Conduits
StandardCSA
MaterialPolyamide 6
ColorBlack
Temperature Rating-40 Degrees C to 105 Degrees C; Short Term to 160 Degrees C
Packaging
- Inner Quantity
- 50
- Outer Dimensions (inches)
- 15.748x11.811x7.874
Outer Quantity700
Weight Uom0.01 lbs. Each
