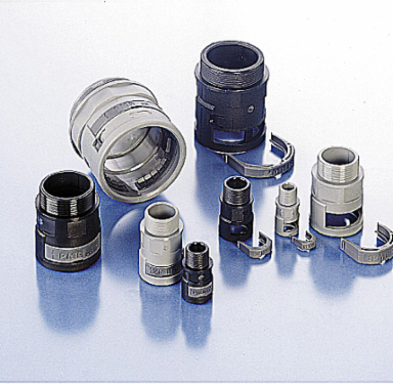

PMA BVNV-G010 Fittings for Nylon Flexible Conduits
- MPN: BVNV-G010
- UPC: 786209952196
- PPN: T-B-BVNV-G010
CAD
$6.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
VN Straight Connector, GS Thread for IP68 Static Conduit - Thread GAS 3/8 Inch, Fits to Conduit Size NW/Metric 10/12, Color Black
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | N |
| Type of connection | Snap connection |
| Thread connection size | Other |
| Thread length | 11mm |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit UR | N |
| Approved in combination with protective conduit Lloyd's Register | N |
| Nominal diameter | 12mm |
|---|---|
| Model | Straight |
| Construction type | Internal thread |
| Thread type | Gas-thread |
| Thread material | Polyamide |
| Total length | 36.5mm |
| Material sealing | No sealing |
| Approved in combination with protective conduit CSA | N |
| Approved in combination with protective conduit DIN EN 61386-23 | N |
| Operating temperature | -40 - +105°C |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | PMA |
| Application | For Cable Protection Systems In a Wide Range of Applications |
| Size | NW10 |
| Insulation Class | IP68 |
| Connection | 3/8 Inch |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Fittings for Nylon Flexible Conduits |
| Standard | CSA |
| Material | Polyamide 6 |
| Color | Black |
| Temperature Rating | -40 Degrees C to 105 Degrees C; Short Term to 160 Degrees C |
Packaging
| Inner Quantity | 50 |
|---|---|
| Outer Dimensions (inches) | 15.748x11.811x7.874 |
| Outer Quantity | 600 |
|---|---|
| Weight Uom | 0.01 lbs. Each |
