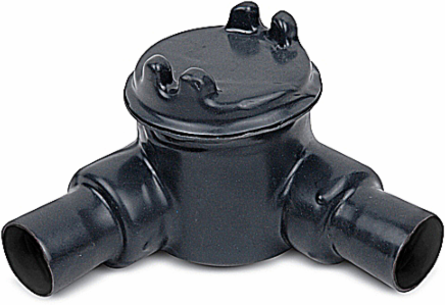

Ocal GUAN14-G GUAN Type Hazardous Location Outlet Box, PVC Coated
- MPN: GUAN14-G
- UPC: 070450838560
- PPN: T-B-GUAN14-G
CAD
$284.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Double-Coated Conduit Outlet Box for Hazardous Locations, GUAN Type - L Shape, Pipe Size 1/2 Inch/16 Metric, Box is Ductile Iron with Zinc Plating, Cover is Die Cast Aluminum, Cover Opening 2.00 Inch/50.80 Millimeters, Gray
Features
- Grade 60-45-10 ductile iron bodies and cast aluminum covers
- Nominal .002 inch (2 mil) blue urethane coating on both interior and exterior and nominal .040 inch (40 mil) PVC coating bonded to exterior
- All hubs have a minimum of five full threads, integral bushing and pressure-sealing sleeves
- All units furnished with internal grounding screw and ship complete with aluminum cover with O-ring gasket
- Explosion-proof, dust-ignition-proof, raintight and suitable for use in the following environments. Class I, Division 1 & 2, Groups C & D - Class II, Division 1, Groups E, F, G - Class III, Division 1 & 2 - NEMA 3, 4, 7 CD, 9 EFG.
- Provide access to conductors for maintenance and future system changes
- Mounting outlets for fixtures, with proper covers
- To change direction in rigid conduit systems
- Join two or more pieces of conduit long runs
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121331 Hazardous location box
- Brand Name
- Ocal
- Special Features
- O-Ring Gasket Provided to Assure NEMA 4 Rating
- Material
- Zinc Plated Iron Body with Aluminum Cover
- Color
- Gray
IGCC4485 Hazardous location box
TypeGUAN Type Hazardous Location Outlet Box, PVC Coated
ApplicationFor Use in Hazardous Locations to Provide Access to Conductors for Pulling, Splicing, Maintenance and Future Changes/upgrades
Size1/2 Inch/16mm
Cubic Capacity6.8 Cubic Inches
Packaging
- Inner Dimensions (inches)
- xx
- Outer Dimensions (inches)
- 13.125x7.125x7.375
Outer Quantity10
Weight Uom1.67 lbs. Each
European Specifications (ETIM)
- ETIM
- EC002600 Box/housing for surface mounting on the wall/ceiling
- For tubediameter
- 16 mm
- Type of housing feed-through
- Thread
- Surface protection
- Other
ShapeRectangular
Number of inlets2
MaterialOther
ColourGrey
