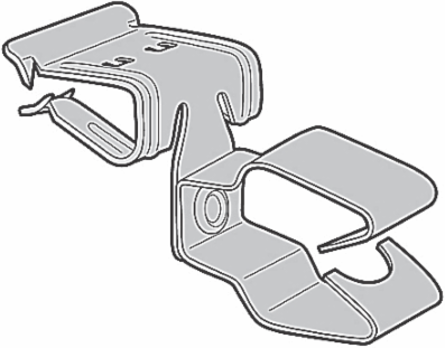

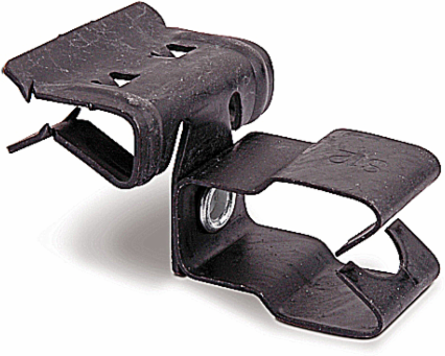

Steel City SSF-CS3/4-F1/4 Conduit & Cable Supports 3/4 Inch, Steel, Flange Thickness 1/8 to 1/4 Inch
- MPN: SSF-CS3/4-F1/4
- UPC: 785991201871
- PPN: T-B-SSF-CS3/4-F1/4
CAD
$6.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Clip, Flange Side-Mount Snap-In, Conduit Size 3/4 Inch, Flange Thickness 1/8 Inch to 1/4 Inch, Steel
Features
- Available with Spring Steel Conduit clip bottom mounted or side mounted.
- Available for 1/2 Inch through 1 Inch EMT and rigid conduit.
- Fits beam flanges 1/8 Inch through 3/4 Inch thick.
- Will pivot through 360 degrees
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39121701 Electrical hangers |
|---|---|
| Brand Name | Steel City |
| Special Features | Available with Spring Steel Conduit clip bottom mounted or side mounted. |
| Size | 3/4 |
| IGCC | 5026 Electrical hangers |
|---|---|
| Type | Conduit & Cable Supports |
| Application | For use with EMT and Rigid conduit |
| Material | Steel |
European Specifications (ETIM)
| ETIM | EC000464 Fixing clamp |
|---|---|
| Flange thickness | 3.175-6.35mm |
| Hinge adjustable | N |
| Type of fastening | Edge clip |
|---|---|
| Hinging | N |
| Material | Steel |
Packaging
| Inner Quantity | 25 |
|---|---|
| Outer Quantity | 225 |
| Weight Uom | 6.5 lbs. per 100 |
| Inner Dimensions (inches) | 9.75x6.75x4.75 |
|---|---|
| Outer Dimensions (inches) | 23.8x13.6x10.3 |
