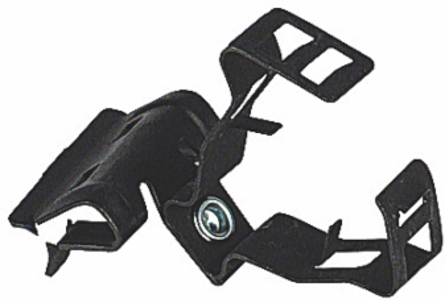

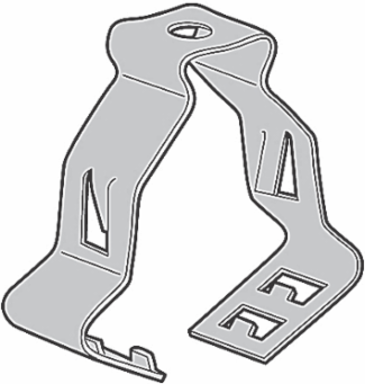

Steel City SSF-CC1/2 3/4 Conduit & Cable Supports

Conduit & Cable Supports - https://media.province-electric.com/ThomasAndBetts/2018q3/9c57c656624700accadfc49a756df47e46e97c69-medium.png

MPN: SSF-CC1/2 3/4
UPC: 785991201765
PPN: T-B-SSF-CC1/2 3/4

Spec sheet

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$3.49/ EA

Qty:

Loading add to cart quantity...

Description

Clip, Conduit, Conduit Size 1/2 Inch - 3/4 Inch, Mounting Hole 9/32 Inch Plain, Steel

Features

Available for 3/8 Inch through 2 Inch trade sizes for EMT, flexible conduit and MC/AC cable.
Available with either a plain hole for 1/4 Inch bolt or a 1/4 Inch-20 thread compression.
Shape of clip and clasp mechanism allows for hand installation, no tools needed. Unique clasp design has an aggressively angled tab and receiving hole to provide consistent, easy clasping of the clip.
Unique finger grips on the ends of the clip provide easy grip for hand installation, or easy grip of pliers when using pliers to install.

Specifications

European Specifications (ETIM)

ETIM: EC000464 Fixing clamp

Hinging: N

Material: Steel

Type of fasteningOther

Hinge adjustableN

North American Specifications (UNSPSC)

UNSPSC: 39121701 Electrical hangers

Brand Name: Steel City

Special Features: Available for 3/8 in. through 2 in. trade sizes for EMT, flexible conduit and MC/AC cable.

Standard: UL E160899

Material: Steel

IGCC5026 Electrical hangers

TypeConduit & Cable Supports

ApplicationFor use with conduit or pipe

Size1/2 - 3/4

Packaging

Inner Quantity: 100

Outer Quantity: 900

Weight Uom: 3.25 lbs. per 100

Inner Dimensions (inches)5.1x5.1x9.3

Outer Dimensions (inches)19.75x20.5x8

Downloads
