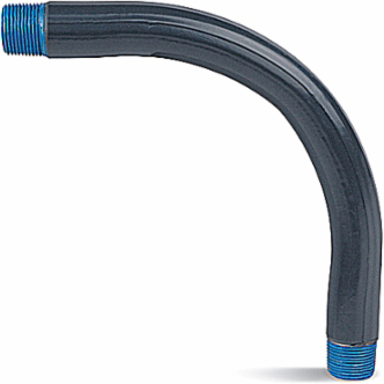

Ocal LRELL2X2445-G Conduit Elbow - Large Radius

MPN: LRELL2X2445-G
UPC: 070450842024
PPN: T-B-LRELL2X2445-G

$356.30

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Large Radius Elbow, 40 Mil PVC Coated, Pipe Size 2 Inch/53 Metric, Angle 45 Degrees, Radius 24 Inch/609.60 Millimeters, Offset 2 Feet 11 Inch/889.00 Millimeters, Straight End 11 Inch/279.40 Millimeters, Unbent Length 59 Inch/1,498.60 Millimeters, Hot-Dip Galvanized Rigid Steel, Gray

Features

A minimum .040 inch (40 mil) PVC coating on the exterior.
A nominal .002 inch (2 mil) blue urethane on the interior.
Ocal-Blue large radius elbows are factory bent to reduce the time and wasted materials that can result from field bending.
Color coded thread protectors on each end.

Specifications

European Specifications (ETIM)

ETIM	EC001493 Bend for cable protection tubes
Material quality	Steel
Colour	Other
Shape	Outer - and inner side plain
Angle of bow	45°

Material	Metal
Surface protection	Hot dip galvanized
Model	Rigid
Inner diameter	53mm

North American Specifications (UNSPSC)

UNSPSC	39131717 Electrical conduit elbow
Brand Name	Ocal
Special Features	Color-Coded Thread Protectors for Easy Identification of Conduit Size
Material	Steel
Finish	Hot-Dipped Galvanized
Trade Size	2 Inch/53mm

IGCC	5746 Electrical conduit elbow
Type	Conduit Elbow - Large Radius
Application	To Change Direction for Threaded, Rigid Conduit or When Terminating at a Box or Fitting
Color	Gray
Length	59 in ; 1,498.6 mm
Connection	45 Degree Bend
