Adaptaflex AT21/M20/SFA/BLY Conduit Fitting with Metric Threads
- MPN: AT21/M20/SFA/BLY
- UPC: 786210282312
- PPN: T-B-AT21/M20/SFA/BLY
CAD
$52.00
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

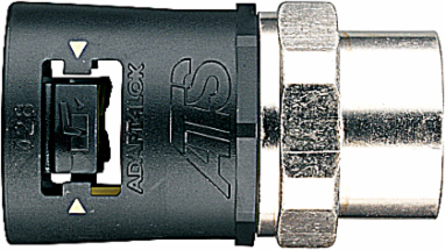

Adaptalok ATS, Straight Conduit Fitting, Swivel Internal Female Thread, Nominal Conduit Size 21mm, M20 Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Yellow Elastomer
Specifications
European Specifications (ETIM)
| ETIM | EC001176 Screw connection for corrugated plastic hose |
|---|---|
| Degree of protection (IP) | IP68 |
| Revolving thread | Y |
| Type of connection | Snap connection |
| Thread connection size | M20 x 1.5 |
| Material | Polyamide |
| Colour | Black |
| Approved in combination with protective conduit DIN EN 61386-23 | Y |
| Nominal diameter | 21mm |
|---|---|
| Model | Straight |
| Construction type | Internal thread |
| Thread type | Metric |
| Thread length | 12mm |
| Material sealing | TPE |
| Approved in combination with protective conduit UR | N |
North American Specifications (UNSPSC)
| UNSPSC | 39121311 Electrical fittings |
|---|---|
| Brand Name | Adaptaflex |
| Application | For Insertion into Threaded Entries or Knockout to Connect Conduit |
| Material | Polyamide/Nylon 6.6 |
| Connection | Straight |
| IGCC | 4441 Electrical fittings |
|---|---|
| Type | Conduit Fitting with Metric Threads |
| Size | NC 21mm |
| Color | Black/Yellow Elastomer |
| Cable Entry | M20 Thread |
Packaging
| Outer Quantity | 10 |
|---|---|
| Weight Uom | 0.1 lbs. Each |
| Outer Dimensions (inches) | 1x1x1 |
|---|
