Adaptaflex SPLB16/M16/A Conduit Fitting with Metric Threads
- MPN: SPLB16/M16/A
- UPC: 786210245379
- PPN: T-B-SPLB16/M16/A
CAD
$170.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

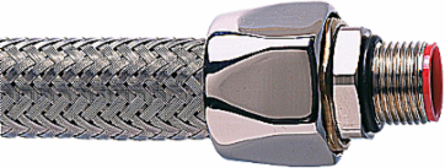

Nickel Plated Brass Straight Fitting with Fixed External Thread, Nominal Conduit Size 16 Millimeters, IP68 Rating, Metric Thread Size M16
Specifications
European Specifications (ETIM)
- ETIM
- EC001180 Screw connection for protective metallic hose
- Degree of protection (IP) conduit dependant
- IP68-IP68
- Revolving thread
- N
- Connection type screw connection to housing
- Thread
- Thread connection size
- M16 x 1.5
- Material housing
- Brass
- Thread length
- 13mm
- Total height
- 10.3mm
- Approved in combination with protective conduit CSA
- N
- Approved in combination with protective conduit FI
- N
Nominal diameter16mm
ModelStraight
Construction typeExternal thread
Thread typeMetric
One-pieceY
Surface protectionNickel-plated
Total length44mm
Approved in combination with protective conduit DIN EN 61386-23N
Approved in combination with protective conduit ULN
Operating temperature-65-+135°C
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.21 lbs. Each
Outer Dimensions (inches)1x1x1
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Brass
- Color
- Metallic
- Cable Entry
- M16 Thread
IGCC4441 Electrical fittings
TypeConduit Fitting with Metric Threads
Size3/8 Inch
FinishNickel Plated
ConnectionStraight
