Adaptaflex AL54/200/C90/BL 90 Degree Conduit Fitting with NPT Threads, 54mm, IP66, Polyamide
Adaptaflex AL54/200/C90/BL 90 Degree Conduit Fitting with NPT Threads, 54mm, IP66, Polyamide
- MPN: AL54/200/C90/BL
- UPC: 5020963782923
- PPN: T-B-AL54/200/C90/BL
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$60.52/ EA
Description

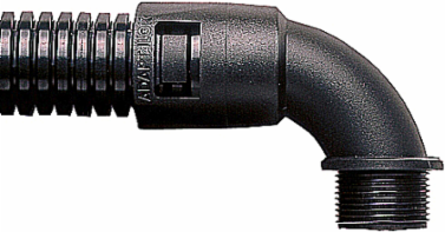

90 Degree Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 54mm, 2 Inch NPT Thread, Polyamide (Nylon) 66, Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- Other
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter54mm
Model90°-elbow
Construction typeExternal thread
Thread typeNPT
Thread length16mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 90 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with NPT Threads
SizeNC 54mm
ColorBlack
Cable Entry2 Inch NPT Thread
Packaging
- Outer Quantity
- 1
- Weight Uom
- 0.27 lbs. Each
Outer Dimensions (inches)1x1x1
