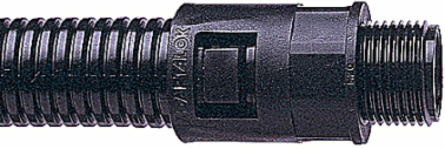

Adaptaflex AL21/PF050/A/BL Straight Conduit Fitting 21mm with 1/2 Inch PF Thread, IP66, Polyamide
- MPN: AL21/PF050/A/BL
- UPC: 786210288048
- PPN: T-B-AL21/PF050/A/BL
CAD
$3.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Conduit Fitting, Fixed External Male Thread, Nominal Conduit Size 21mm, 1/2 Inch PF Thread, Polyamide (Nylon) 66, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- Straight
IGCC4441 Electrical fittings
TypeConduit Fitting with PF Threads
SizeNC 21mm
ColorBlack
Cable Entry1/2 Inch PF Thread
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP66
- Revolving thread
- N
- Type of connection
- Snap connection
- Thread connection size
- Other
- Total length
- 26.7mm
- Material
- Polyamide
- Approved in combination with protective conduit UR
- Y
Nominal diameter21mm
ModelStraight
Construction typeExternal thread
Thread typeOther
Thread length14mm
Total height48.8mm
ColourBlack
Approved in combination with protective conduit DIN EN 61386-23Y
Packaging
- Inner Quantity
- 10
- Outer Dimensions (inches)
- 1x1x1
Outer Quantity250
Weight Uom0.02 lbs. Each
