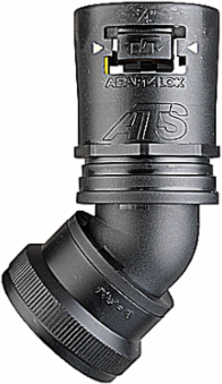

Adaptaflex AT21/U113/SF45/BLY 45 Degree Conduit Fitting, 1-1/8 Inch UNEF Thread, Polyamide, IP68
Adaptaflex AT21/U113/SF45/BLY 45 Degree Conduit Fitting, 1-1/8 Inch UNEF Thread, Polyamide, IP68
- MPN: AT21/U113/SF45/BLY
- UPC: 5020963799716
- PPN: T-B-AT21/U113/SF45/BLY
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$50.22/ EA
Description
Adaptalok ATS, 45 Degree Conduit Fitting, Swivel Internal Female Thread, Nominal Conduit Size 21mm, 1-1/8 Inch - 18 Connector UNEF Thread, Polyamide (Nylon) 66, Nickel Plated Brass Thread/TPE, Black with Yellow Elastomer
Specifications
European Specifications (ETIM)
- ETIM
- EC001176 Screw connection for corrugated plastic hose
- Degree of protection (IP)
- IP68
- Revolving thread
- Y
- Type of connection
- Snap connection
- Thread connection size
- Other
- Material
- Polyamide
- Colour
- Black
- Approved in combination with protective conduit DIN EN 61386-23
- Y
Nominal diameter21mm
Model45°-elbow
Construction typeInternal thread
Thread typeUNEF
Thread length9.5mm
Material sealingTPE
Approved in combination with protective conduit URN
Packaging
- Outer Quantity
- 10
- Weight Uom
- 0.07 lbs. Each
Outer Dimensions (inches)6x2x6
North American Specifications (UNSPSC)
- UNSPSC
- 39121311 Electrical fittings
- Brand Name
- Adaptaflex
- Application
- For Insertion into Threaded Entries or Knockout to Connect Conduit
- Material
- Polyamide/Nylon 6.6
- Connection
- 45 Degree
IGCC4441 Electrical fittings
TypeConduit Fitting with UNEF Threads
SizeNC 21mm
ColorBlack/Yellow Elastomer
Cable Entry1-1/8 Inch - 18 UNEF Thread
