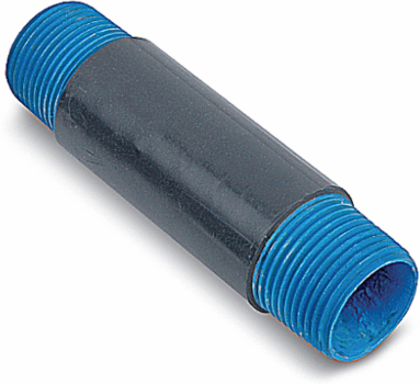

Ocal NPL3/4X31/2-G Conduit Fittings-PVC Coated
- MPN: NPL3/4X31/2-G
- UPC: 704508399573
- PPN: T-B-NPL3/4X31/2-G
CAD
$91.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
PVC Coated Conduit Nipple, 3/4 Inch/21 Metric Pipe Size x 3-1/2 Inch/88.9 Millimeters Nipple Length, Nominal .002 Inch (2 mil) Blue Urethane on Interior, Minimum .040 Inch (40 mil) PVC Coating on Exterior, Blue Urethane Coating Over Threads, Hot-Dip Galvanized Rigid Steel, Gray
Features
- A nominal .002 (2 mil) blue urethane on the interior.
- Color coded thread protectors on each end.
- Blue urethane coating over threads.
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131718 Electrical conduit nipple |
|---|---|
| Brand Name | Ocal |
| Special Features | A Minimum .040 Inch (40 Mil) PVC Coating on Exterior |
| Standard | cULus E46453, CSA, RoHS |
| Color | Gray |
| Length | 3-1/2 in ; 88.9 mm |
| IGCC | 5753 Electrical conduit nipple |
|---|---|
| Type | Conduit Fittings-PVC Coated |
| Application | To Connect Two Fittings |
| Material | Steel |
| Finish | Hot-Dipped Galvanized |
| Trade Size | 3/4 Inch/21 Metric |
European Specifications (ETIM)
| ETIM | EC001469 Protective hose adapter |
|---|---|
| Thread size outer thread metric | 21 |
| Surface protection | Hot dip galvanized |
| Total length | 88.9mm |
| With outer thread | Y |
|---|---|
| Material housing | Other |
| Model | Straight |
Packaging
| Outer Quantity | 60 |
|---|---|
| Weight Uom | 31 lbs. per 100 |
| Outer Dimensions (inches) | 12.5x7.5x7.5 |
|---|
